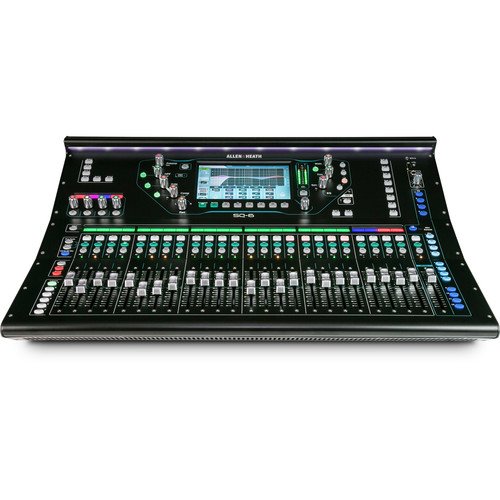

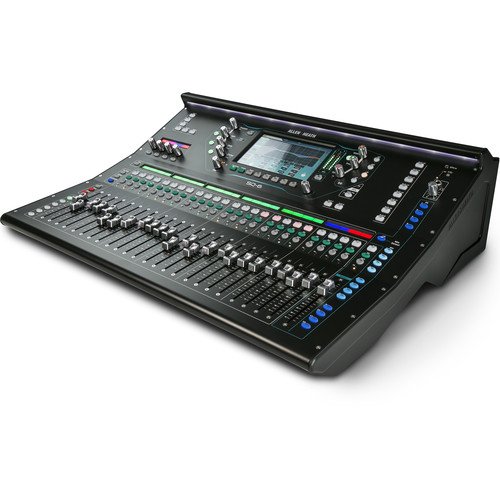

Allen & Heath SQ-6 Digital Mixer 48-Channel 36-Bus with 24+1 Motorized Faders

Name: Allen &amp; Heath SQ-6 Digital Mixer 48-Channel 36-Bus with 24+1 Motorized Faders
Brand: Allen &amp; Heath
SKU: SQ-6
Availability: InStock

AED 18990.48

The Allen & Heath SQ-6 is a versatile 48-channel digital mixing console with 36 buses, ideal for live sound, corporate A/V, recording studios, and houses of worship. It features 24+1 motorized faders, 24 high-grade mic preamps, eight stereo FX engines with return channels, and the RackExtra FX library. The 12 stereo outputs can be configured for groups or auxes, perfect for in-ear monitoring, while the Auto Mic Mixing function provides efficient management of multiple microphones.

In stock

Estimated Delivery : Up to 3 business days
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

The Allen & Heath SQ-6 is a 48-channel, 36-bus digital mixing console well suited for live sound, corporate A/V, recording studios, and houses of worship. The SQ-6 features 24+1 motorized faders and 24 professional-quality microphone preamps. There are also eight stereo FX engines with dedicated return channels and access to the RackExtra FX library. The mixer’s 12 stereo outputs (configurable as groups or auxes) are well suited for in-ear-monitor setups, while the Auto Mic Mixing function offers quick and easy operation over multiple microphones for conferences, panel talks, and more.

At the heart of the SQ-6 lies the 96 kHz XCVI Core FPGA engine, which delivers professional, high-resolution audio quality, ultra-low latency (less than 0.7 ms), variable bit depth for precision and noise performance, mix coherency down to the sample, and the power to handle high channel / mix counts and ample FX processing. The SQ’s DEEP processing architecture allows you to hand-pick boutique compressor and preamp emulations and embed them directly within the mixer’s inputs and mix channels, all without adding system latency or setup hassles.

Key Features

Specification	Details
Number of Analog Input Channels	48
Mix Routing	8 x Stereo FX Return
Groups	8 x Mute Group, 8 x DCA Group
Display	7″ Touchscreen
Display Resolution/Color	Main Display: 800 x 480 8-Bit RGB
Faders	3.9″ / 100 mm
Meters	Main Meter: 2 x 12-Segment LED, Channel Meter: Single LED
Meter Range	-3 dBFS Peak/Clip (+19 dBu at XLR Output)
Meter Calibration	0 dB on Meter = -18 dBFS (+4 dBu at XLR Output)
Gain/Trim Range	Line: ±24 dB (Stereo Channels), Mic/Line: 0 dB to +60 dB (in 1 dB Steps)
Input Pad	-20 dB
Input Polarity	Normal/Reverse
Gate Parameters	Threshold: -72 to +18 dBu, Depth: 0 to 60 dB, Attack: 50 μs to 300 ms, Hold: 10 ms to 5 sec, Release: 10 ms to 1 sec
Compressor Parameters	Threshold: -46 to +18 dBu, Ratio: 1:1 to ∞:1, Attack: 30 μs to 300 ms, Release: 50 ms to 2 sec, Knee: Soft / Hard, Blend: Yes
Sidechain Filters	Compressor: High-Pass: 20 to 5 kHz, Band-Pass: 120 Hz to 10 kHz, Low-Pass: 120 Hz to 20 kHz; Gate: High-Pass: 20 Hz to 5 kHz, Band-Pass: 120 Hz to 10 kHz, Low-Pass: 120 Hz to 20 kHz
EQ	FX Returns: 4-Band Parametric
EQ Parameters	1 x HF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable), 2 x MF Notch/Peak: ±15 dB at 20 Hz to 20 kHz, 1 x LF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
Graphic EQ	28-Band 1/3 Octave, ±12 dB 31 Hz to 16 kHz
Filters	High-Pass: 20 Hz to 2 kHz, 12 dB/Octave
Channel Output/Source Monitoring	AFL, PFL, Post-Preamp, Post-HPF, Post-Gate, Post-EQ, Post-Compressor, Post-FX, Insert Return
Internal Effects	Reverb, Stereo Delay (Tap), Reverb (Gated), ADT, 2 x Chorus, Flanger, Phaser
Real Time Analyzer	31-Band 1/3 Octave, 20 Hz to 20 kHz
Audio Delay	Adjustable Up to 682 ms
Sample Rates	96 kHz; AES3 Output: 44.1 / 48 / 88.2 / 96 kHz; Stereo Record: 96 kHz; Stereo Playback: 44.1 / 48 / 96 kHz; Multitrack Playback/Multitrack Record: 96 kHz
Bit Depth	Up to 96-Bit; Stereo Record: 24-Bit; Stereo Playback: 16 / 24-Bit; Multitrack Playback, Multitrack Record: 24-Bit
Latency	< 0.7 ms (Mic Input to Main Output)
dBFS Reference Level	+18 dBu = 0 dBFS
Headroom	+18 dB
Frequency Response	20 Hz to 20 kHz +0/-0.5 dB
Max Input Level	Mic/Line Input: +30 dBu; Aux Input: +22 dBu (+4 dBu), +18 dBu (0 dBu)
Output Level	Analog Output: +4 dBu (Nominal), +22 dBu (Max)
Analog Dynamic Range	112 dB
I/O Impedance	1/4″, XLR Output: < 75 Ohms; AES3 Output: 110 Ohms; Aux Input: > 7 Kilohms; Mic/Line Input: > 5 Kilohms
Noise Floor	-90 dBu (with Inputs Muted)
THD+N	0.006% at Unity Gain; Mic/Line Input to AES3 Output: 0.002% at Unity Gain, 0.003% at +30 dB Gain
Signal Generator	Sine, White, Pink, or Band-Pass Noise (Assignable to Any Mix)

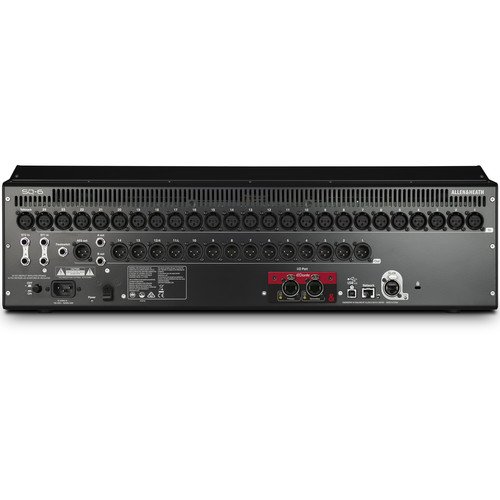

Analog Inputs	1 x XLR Talkback Input, 24 x XLR Balanced Mic/Line Input, 4 x 1/4″ TRS Balanced Aux Input (2 Stereo Pair, Half-Normalled), 1 x 1/8″ / 3.5 mm Unbalanced Aux Input
Analog Outputs	14 x XLR Balanced Output, 2 x 1/4″ TRS Balanced Output
Phantom Power	+48 V
Digital I/O	1 x RJ45 (Network), 1 x XLR AES3 Output, 1 x etherCON (I/O)
USB	1 x USB Type-A (External Memory), 1 x USB Type-B (USB 2.0, Audio Streaming)
Expansion Ports	1 x I/O Card
Max Multitrack Recording	16 Tracks
File Format Support	WAV
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Operating Temperature	32 to 104°F / 0 to 40°C
Dimensions	25.1 x 20.3 x 7.8″ / 638 x 514.9 x 198 mm
Weight	29.3 lb / 13.3 kg
