Allen & Heath XONE:23C DJ Mixer with Internal Soundcard

The Allen & Heath XONE:23C DJ Mixer with Internal Soundcard is an ideal choice for both professional and home DJs who seek superior control and impeccable sound quality. Perfect for parties, club environments, and live applications, this mixer combines functionality with a streamlined design.

Product Overview

The XONE:23C features a built-in 4 stereo channel 96kHz 24-bit USB sound card, ensuring high-definition audio playback and recording. The mixer also integrates the advanced Xone voltage control filter system with adjustable resonance, allowing versatile sound shaping. Each side of the mixer sports a 3-band equalizer with total kill capabilities for high, mid, and low frequencies.

Advanced I/O and Control

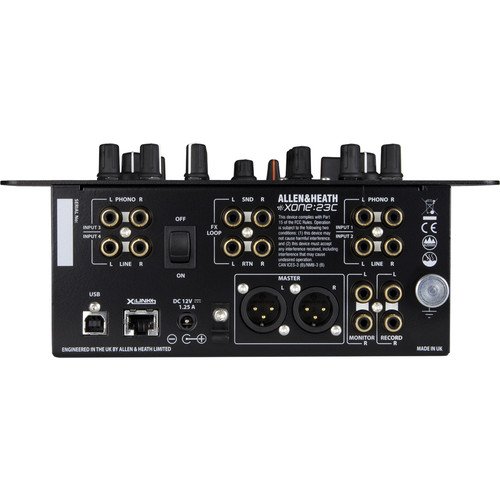

Equipped with two pairs of RCA line inputs and two pairs of RCA phono inputs, the XONE:23C supports various input sources. The independent level control for each input allows seamless blending of up to four audio sources. This flexibility is further enhanced by dedicated stereo send and return channels, perfect for incorporating external effects processors.

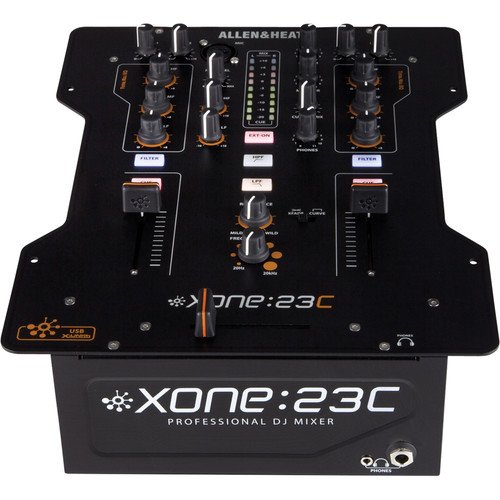

The front panel includes a balanced XLR input for connecting microphones, complete with level, high, and low-frequency EQ controls. Gain knobs for all channels, LED light meters, and illuminated buttons for cueing and filter engagement offer intuitive control and visual feedback during live performances.

Customizable Crossfader

The mixer features a switchable crossfader curve selector, allowing DJs to toggle between smooth mixing and sharp scratching modes. It also accommodates an optional crossfader upgrade to the Allen and Heath Innofader, delivering enhanced precision and performance for demanding DJ sets.

Specifications

Specification	Details
Number of Channels	2 x Stereo
Fader Shutoff	Channel: >-80 dB Crossfader: >-80 dB
EQ	Hi, Mid, Low
Built-In Effects	None
Sample Rates	96 kHz
Bit Depths	24-Bit
Frequency Response	10 Hz to 50 kHz
SNR	-85 dBu
THD+N	0.01%
Audio Inputs	2 x Stereo RCA Phono Input 2 x Stereo RCA Line Input 1 x Stereo RCA Return Input 1 x XLR 3-Pin Mic Input
Audio Outputs	2 x XLR 3-Pin Balanced Master Output 1 x Stereo RCA Booth Output 1 x Stereo RCA Record Output 1 x Stereo RCA Send Output 1 x 1/8″ / 3.5 mm TRS Headphone Output 1 x 1/4″ TRS Headphone Output
USB	2 x USB Type-B (USB 2.0)
Dimensions (W x D x H)	9.4 x 12.4 x 4.2″ / 240.0 x 315.0 x 106.0 mm
Weight	6 lb / 2.7 kg
Package Weight	11.05 lb
Box Dimensions (LxWxH)	19.291 x 13.701 x 8.74″
