BSS Audio BLU-50 4×4 Signal Processor with BLU Link

Name: BSS Audio BLU-50 4x4 Signal Processor with BLU Link
Brand: BSS
SKU: BLU-50 (EU)
Availability: InStock

AED 5372.38

The BLU-50 is a half-rack width processor featuring four inputs and four outputs with configurable signal and logic processing, and a 48-channel BLU link digital audio bus. It offers software configurable gain, phantom power, and LED indicators for signal monitoring. Power options include an included 12VDC supply, 12-48VDC via a terminal block, or PoE+ through the Ethernet port. Controlled via HiQnet Audio Architect™ or HiQnet London Architect™, the BLU-50 integrates seamlessly with other Soundweb London devices, supporting distances up to 100m with standard cabling and beyond 10km using fiber media converters.

In stock

Estimated Delivery : Up to 3 business days
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

BLU-50 Fixed I/O Processor

The BLU-50 is a versatile half-rack processor designed for high-performance audio applications. It features a fixed configuration of 4 inputs and 4 outputs, along with configurable signal and logic processing. This processor supports multiple power options, including a 12VDC power supply, 12-48VDC via a terminal block connector, and Power over Ethernet (PoE+).

With software configurable input gain, selectable phantom power, and clear LED indications, the BLU-50 offers convenient monitoring without the need for a PC. It includes BLU link for low latency, fault-tolerant digital audio networking, and can be integrated with other Soundweb London devices through HiQnet software.

Key Features

4 Analog Inputs with 48V Phantom Power per Channel
4 Analog Outputs
Configurable Signal Processing
Rich Palette of Processing and Logic Objects
48 Channel Low Latency Digital Audio Bus

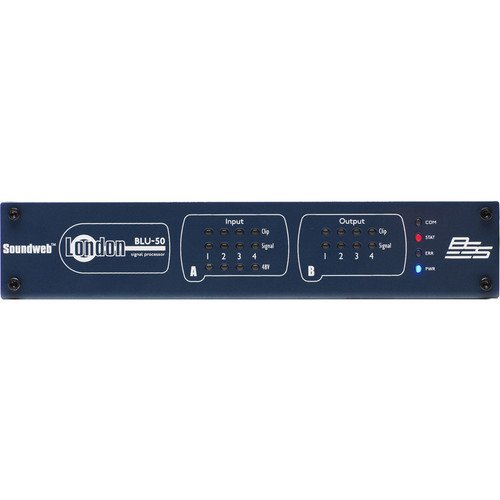

Clear Front Panel LED Indication
12 Control Inputs and 6 Logic Outputs for GPIO Integration
Multiple Powering Options including 12-48VDC and PoE+
Rack, Surface, and Desk Mount Installation Options

Specification	Details
Indicators	Per Input: Signal Present, Clip, 48V; Other: COM, STAT, ERR, PWR
Analog Inputs	4 Electronically Balanced, Configurable Gain up to +48 dB, Input Impedance: 3.5 kΩ
Analog Outputs	4 Electronically Balanced, Max Output Level: +20 dBu, Frequency Response: 20 Hz to 20 kHz
Control Ports	12 Inputs, 6 Outputs, Voltage Range: 0 to 4.5 V
BLU Link	2 x RJ45 Connectors, Max Distance: 100m using Cat 5e Cable
Power Requirements	12 to 48 VDC, Power Consumption: < 55 VA
Dimensions	1.6 x 8.6 x 7.8 in (41.3 x 219.2 x 196.9 mm)
Weight	2.8 lb (1.3 kg)
