BSS Audio EC-4BV Ethernet Controller with Four Buttons and Volume Control – White

Name: BSS Audio EC-4BV Ethernet Controller with Four Buttons and Volume Control - White
Brand: BSS
SKU: EC-4BV-WHT-EU
Availability: InStock

AED 1131

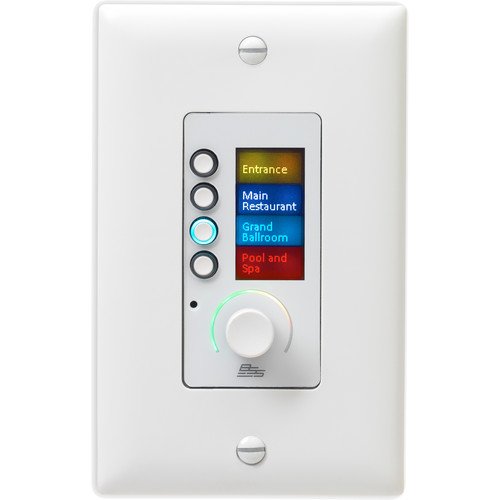

The white EC-4BV Ethernet Controller from BSS Audio is a wall-mount unit in a single-gang US Decora form factor, featuring an Ethernet port for configuration, control, monitoring, and PoE. Compatible with HiQnet devices and configured via HiQnet Audio Architect software, it includes a push/rotary encoder, encoder ring, four control buttons, and a 64×128 pixel LCD screen, all multicolor backlit with adjustable intensity.

In stock

Estimated Delivery : Up to 3 business days
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

EC-4BV Ethernet Controller

The EC-4BV Ethernet Controller by BSS Audio is designed for seamless integration with BSS Audio Soundweb London, Crown DCi, and other HiQnet devices. It comes in a single-gang US Decora form factor, featuring an Ethernet port for easy configuration, control, monitoring, and Power over Ethernet (PoE). Users can enjoy intuitive drag-and-drop setup through the HiQnet Audio Architect software application. Interactive control components include a push/rotary encoder, an encoder ring, four control buttons, and a 64×128 pixel LCD screen, all of which are multicolor backlit with adjustable intensity.

Key Features

Specification	Details
Push/Rotary Encoder	Programmable for continuous and binary parameter control (e.g., volume, mute)
Encoder Ring	Displays bouncing audio meter or volume setting
Control Buttons	Allows for binary parameter control, preset recall, or source selection
LCD Screen	Customizable 64×128 pixel screen for displaying text
Multi-Color Backlighting	Eight color options with adjustable intensity
Remote Lock/Unlock	Secure access via PIN entry
Power Over Ethernet (PoE)	Operates over standard Ethernet cabling

Specifications

Specification	Details
Maximum Cable Length	328′ / 100 m
Power Consumption	300 mA Max at 48 VDC
Connector	1 x RJ45, Cat 5e Ethernet Port
Ethernet Cabling	VW-1 Rated, 48 VDC, 13 W (Recommended)
Dimensions	4.7 x 2.9 x 2.1″ / 11.9 x 7.4 x 5.4 cm
Weight	1 lb / 0.5 kg Approx.
