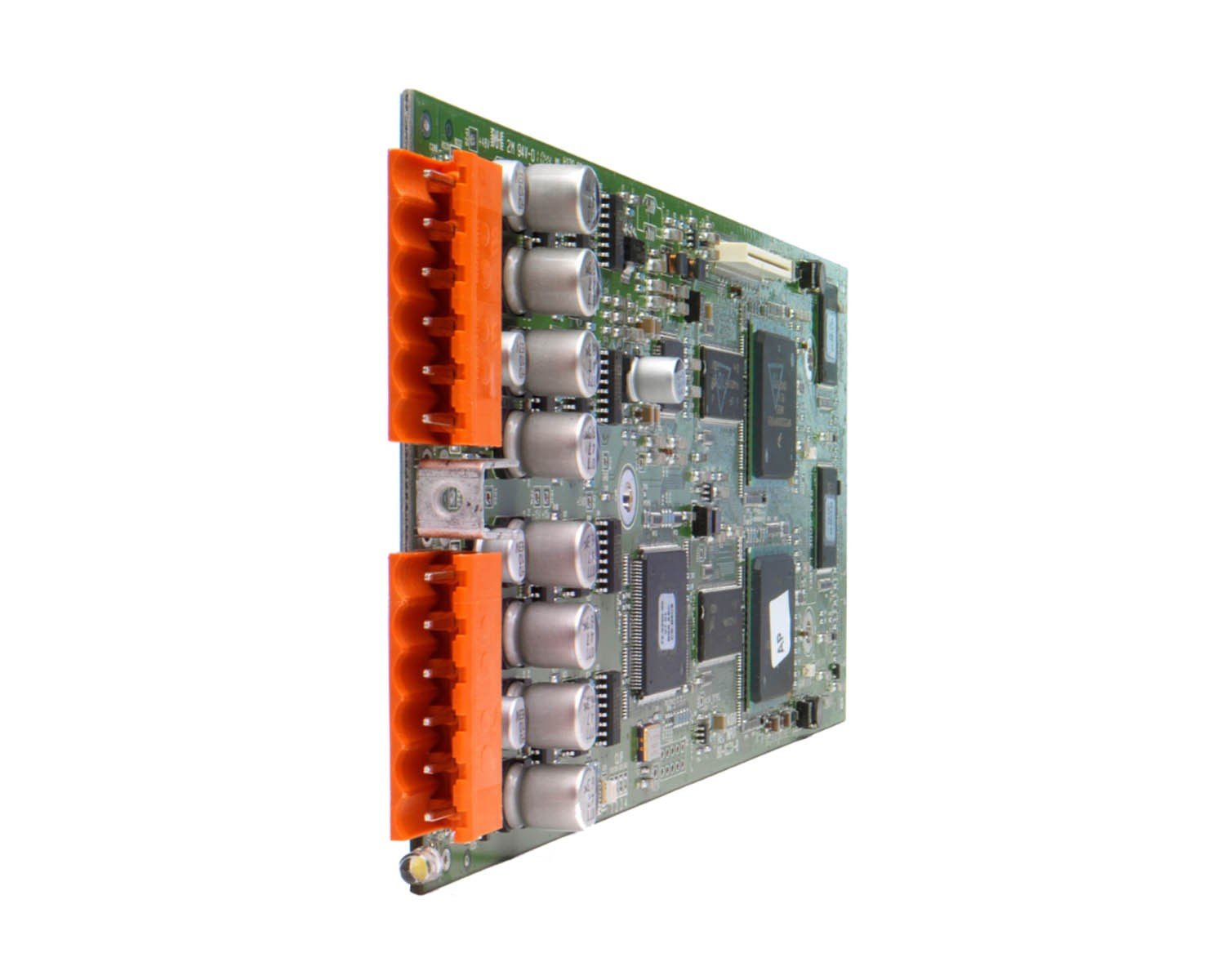

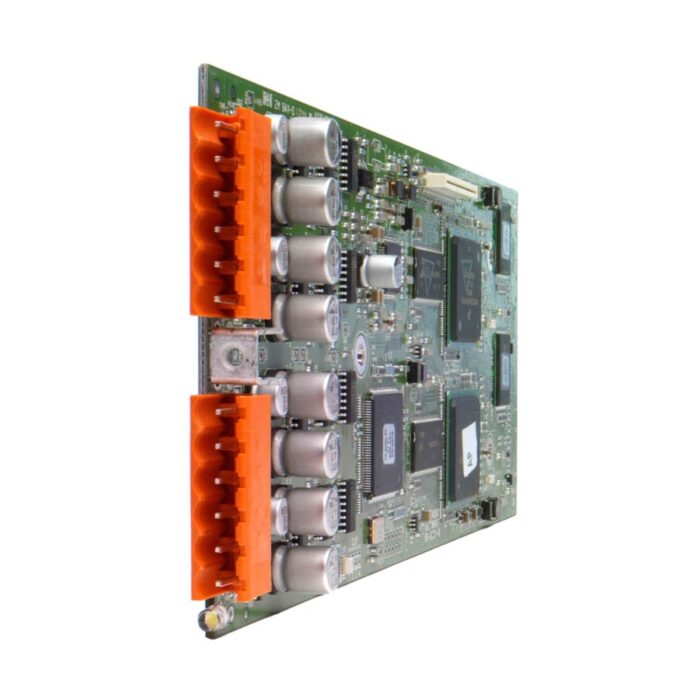

BSS BLUAEC-IN Acoustic Echo Cancellation Input Card

Soundweb London Acoustic Echo Cancellation (AEC) Input Cards

The Soundweb London AEC Input Cards are designed to enhance your conference experience by canceling acoustic echo, ensuring crystal-clear audio. These cards can be installed in any of the four available slots on compatible Soundweb London devices, such as the BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, and BLU-120.

Each AEC Input Card features four independent channels of Acoustic Echo Cancellation, which can be configured via software. The inclusion of Automatic Gain Control (AGC) and Noise Cancellation (NC) allows for optimal microphone levels and the elimination of persistent background noise. Non-Linear Processing (NLP) dynamically reduces any residual echo caused by incomplete cancellation.

With configurable phantom power per channel and software-controlled analog gain adjustable in 6dB steps from 0dB to 48dB, the Soundweb London AEC Input Cards offer precise control over your audio inputs. Additionally, a direct microphone feed for local sound reinforcement ensures low latency and full-bandwidth audio for local applications.

Key Features

• Compatible with BLU-800, BLU-320, BLU-160, and BLU-120 devices
• Configurable phantom power (per channel)
• Software-controlled analog gain (0dB to 48dB, 6dB steps)
• Four independent channels of AEC
• Unique reference per channel
• Automatic Gain Control (AGC)
• Noise Cancellation (NC)
• Non-Linear Processing (NLP)
• Direct microphone feed for local sound reinforcement
