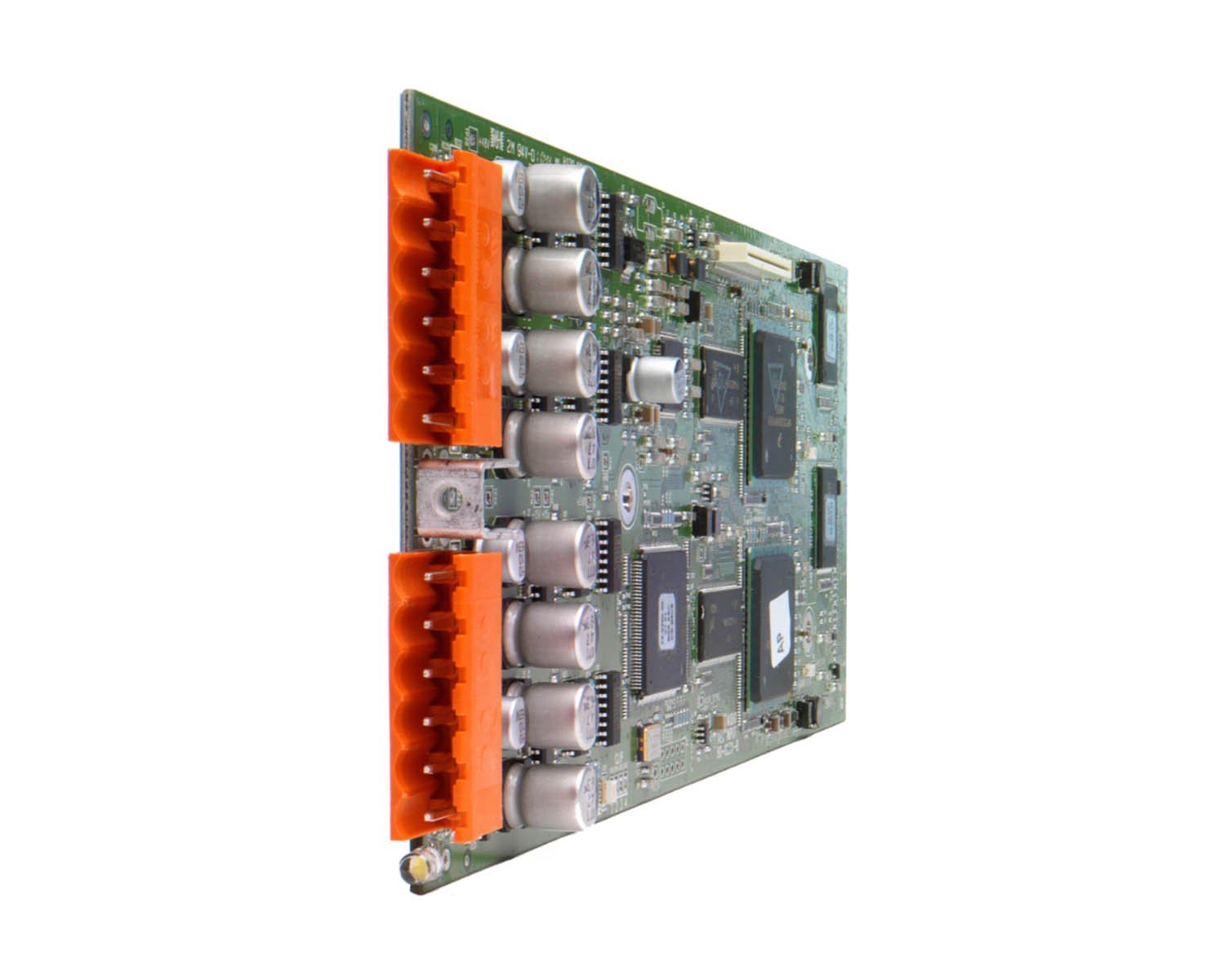

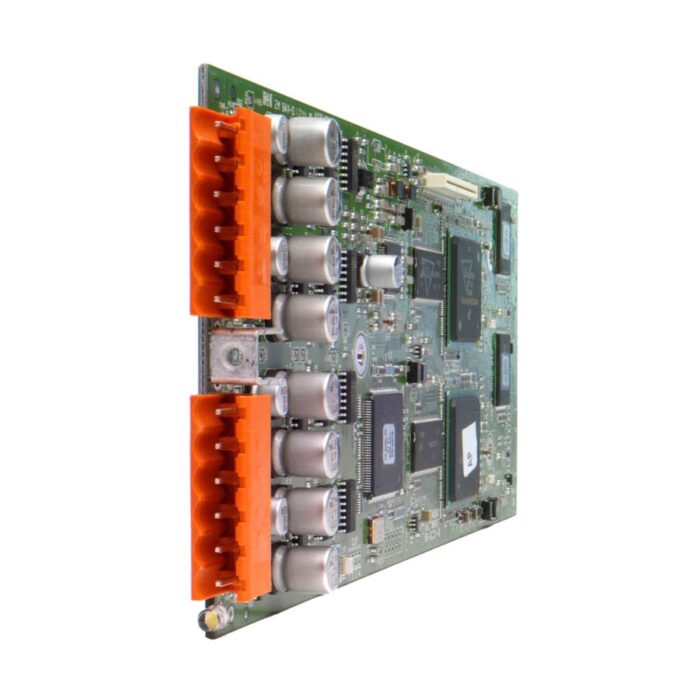

BSS Soundweb BLUCARD-IN Analog Microphone/Line Input Card

Name: BSS Soundweb BLUCARD-IN Analog Microphone/Line Input Card
Brand: BSS
SKU: BLUCARD-IN
Availability: InStock

AED 1489

The Soundweb London Analog Input Card is compatible with multiple Soundweb London devices, including BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32, and BLU-16, and allows these devices to receive microphone or line level signals through its four configurable card slots.

In stock

Estimated Delivery : Up to 3 business days
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

Soundweb London Analog Input Card

The Soundweb London Analog Input Card is designed to populate any of the four card slots on Soundweb London BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32, and BLU-16 devices. This analog card enables Soundweb London devices to receive microphone and line level signals.

Offering Phantom Power, configurable per channel, and software-controlled analog gain in 6dB steps from 0dB to 48dB, the Soundweb London Analog Input Card adds a level of flexibility and control to your audio setup.

The Analog Input Card is equipped with two Combicon connectors, utilized as follows:

Connector 1
- Balanced / Unbalanced Audio, Channel 1 – Mic/Line
- Balanced / Unbalanced Audio, Channel 2 – Mic/Line
Connector 2
- Balanced / Unbalanced Audio, Channel 3 – Mic/Line
- Balanced / Unbalanced Audio, Channel 4 – Mic/Line

Key Specifications

Specification	Details
Device Compatibility	BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32, BLU-16
Input Type	Microphone / Line Level
Phantom Power	Yes, configurable per channel
Analog Gain	6dB steps from 0dB to 48dB
Connectors	2 x Combicon
Channels	4 (Balanced / Unbalanced)
