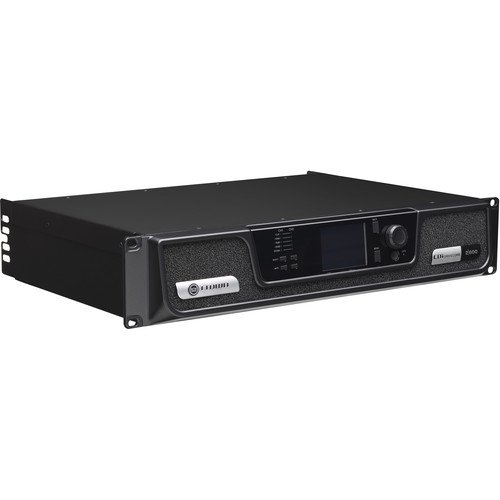

Crown Audio CDi 2|600 2-Channel DriveCore Series 600W Power Amplifier

The Crown Audio CDi 2|600 2-Channel DriveCore Series Power Amplifier

The 600W Crown Audio CDi 2|600 2-Channel DriveCore Series Power Amplifier utilizes advanced technology derived from Crown’s flagship series, offering a notable blend of high performance, extensive features, and an economical price point. Ideal for medium-sized installations in cinemas, houses of worship, bars, and lounges, the CDi 2|600 simplifies complex setups while ensuring exceptional audio fidelity.

Technology and Design

At the heart of the CDi 2|600 is the DriveCore integrated circuit, engineered to replace hundreds of individual components. This innovation minimizes component variability and enhances reliability, culminating in a design that delivers superior audio quality efficiently. The amplifier is designed for simplicity, equipped with network control, advanced DSP circuitry, and a user-friendly front-panel interface.

High Versatility and Ease of Use

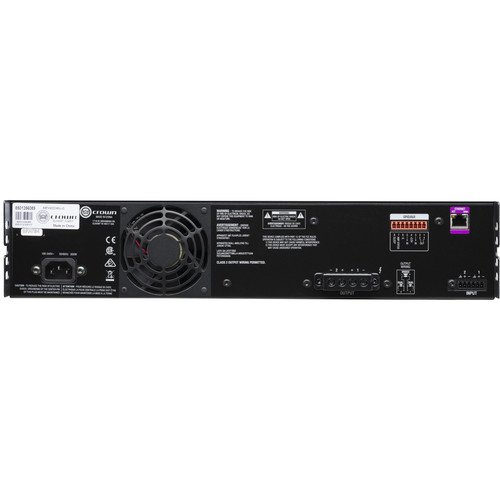

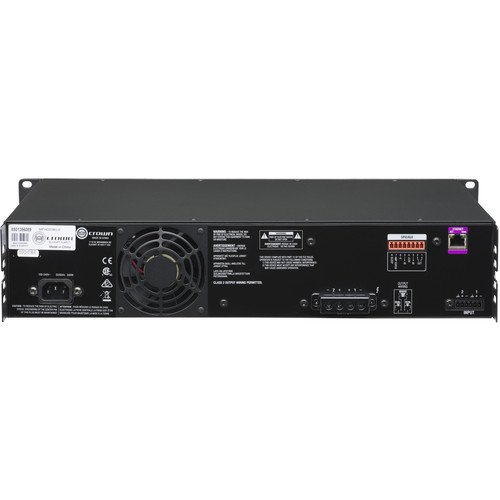

Capable of driving up to 100Vrms speaker loads without a transformer, the CDi 2|600 comes pre-configured with JBL speaker tunings to streamline installation. The inclusion of an Ethernet port supports configuration and operation over TCP/IP using HARMAN’s HiQnet Audio Architect software. The rear panel offers terminal block inputs and barrier strip outputs for flexible connectivity options.

Features Highlights

• DriveCore Technology for enhanced performance and reliability
• Network control and monitoring with HiQnet Audio Architect

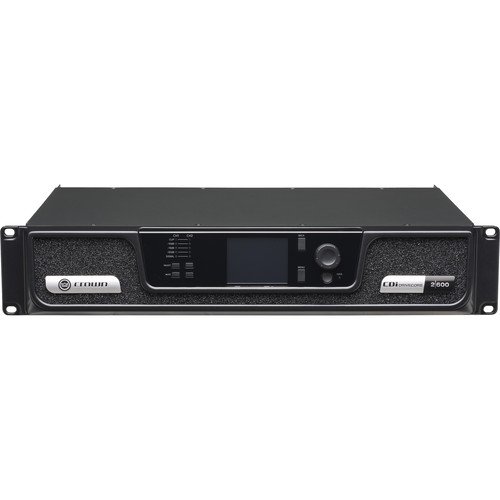

• Comprehensive front-panel user interface
• Advanced DSP functionalities including EQ, crossover, and delay
• 20 programmable device presets for customized setups
• Environmentally friendly design adhering to GreenEdge standards by HARMAN

Specifications

Specification	Details
Number of Channels	2
Power Rating	600W per channel, 1200W bridged
Load Impedance / Voltage	Stereo: 2/4/8/16 Ohms, 70/100V; Bridged: 4/8/16 Ohms, 140/200V
Protections	DC Fault, Low Impedance, Open Circuit, Overcurrent, Overvoltage, Ultrasonic, Undervoltage
Frequency Response	20 Hz to 20 kHz ±0.5 dB (8 Ohms)
Damping Factor	>1000
Input Sensitivity	Line: 0.7 Vrms to 2.5 Vrms / -0.8 to 10.2 dBu (8 Ohms)
Max Gain	34 dB
Signal-to-Noise Ratio	>104 dB
THD	0.35% at rated power
Intermodulation Distortion	≤0.35%
Cooling	Fan, variable speed
Dimensions	19.0 x 3.5 x 12.2 inches (48.3 x 8.9 x 31.1 cm)
Weight	14.5 lb / 6.6 kg
