DBX 1215 Dual-Channel 15-Band Graphic Equalizer with Switchable Boost/Cut and RF Filtered I/O

Name: DBX 1215 Dual-Channel 15-Band Graphic Equalizer with Switchable Boost/Cut and RF Filtered I/O
Brand: DBX Professional
SKU: DBX1215V-EU
Availability: InStock

AED 1614.29

The dbx 1215 is a dual-channel, 15-band graphic equalizer with 2/3 octave sliders, featuring selectable boost/cut ranges, high-pass filters with bypass, active balanced input/output, and chassis/signal ground-lift for hum isolation.

In stock

Estimated Delivery : Up to 3 business days
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

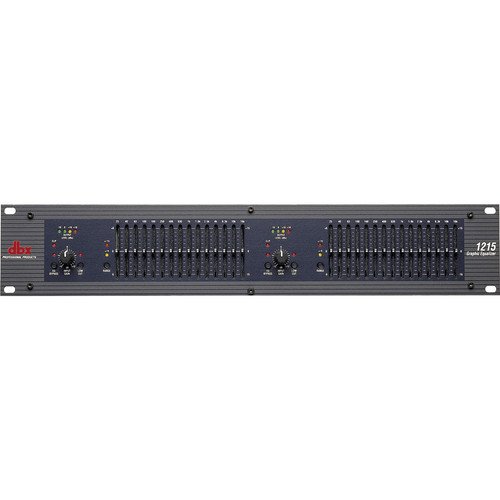

dbx 1215 Dual-Channel Graphic Equalizer

The dbx 1215 is a robust 15-band dual-channel graphic equalizer designed for professional sound reinforcement applications. With straightforward controls, it ensures precise audio adjustments, making it ideal for demanding environments.

Key Features

Specification	Details
Graphic Equalizer	Dual-channel, 15-band, 2/3 octave
Boost/Cut Range	±6 dB or ±15 dB selectable
Sliders	45mm center-detent
Filters	Fixed high-pass filters with bypass

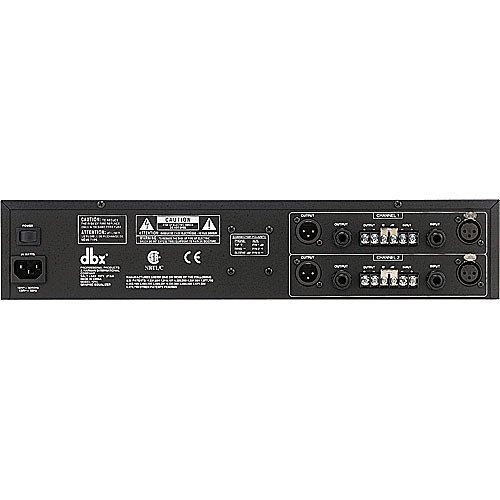

Input/Output Connections	Active balanced, XLR, 1/4″ TRS, Barrier Strip
Ground Isolation	Chassis/signal ground-lift
Noise Reduction	RF-filtered inputs and outputs
Power Supply	Internal
Compatibility	Magnetically isolated transformer
Relay Bypass	Power-off hard-wire with 2-second delay

Specifications

Specification	Details
Number of Channels	2
Inputs	2 x XLR, 2 x 1/4″ TRS, Barrier Strip
Outputs	2 x XLR, 2 x 1/4″ TRS, Barrier Strip
Maximum Input Level	+21 dBu
Frequency Bands	15 x 2, ISO spacing
Bandwidth	2/3 Octave
Range (Boost/Cut)	±6 dB or ±15 dB selectable
Maximum Output Level	+21 dBu
Frequency Response	10 Hz to 50 kHz
Dynamic Range	115 dB
Noise	-97 dBu
Dimensions	2 RU, 7 15/16″ Deep
Power-Off Relay	Hardwire bypass with 2-second delay
