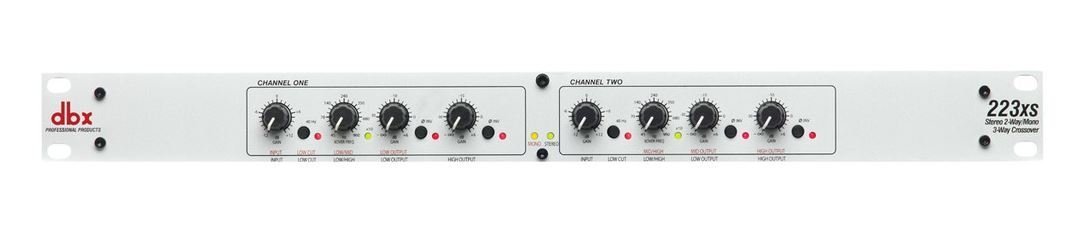

dBX 223xs Stereo 2-Way/Mono 3-Way Crossover with XLR Connectors

Name: dBX 223xs Stereo 2-Way/Mono 3-Way Crossover with XLR Connectors
Brand: DBX Professional
SKU: DBX223XSV-EU
Availability: InStock

AED 856.19

The dbx® 223xs Crossover enhances your speaker performance with precision filters that allocate the correct frequencies to each loudspeaker driver, reducing distortion and optimizing amplifier efficiency. This dual channel crossover features Linkwitz-Riley 24dB per octave filters, independent output gain controls, output phase inversion, a 40 Hz low cut filter, and optional subwoofer output summing, all housed in a rugged design with high-quality XLR inputs and outputs.

In stock

Estimated Delivery : Up to 3 business days
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

dbx® 223xs Crossover – Dual Channel Audio Processor

The secret to making speakers sound great lies with the crossover you use. With the dbx® 223xs Crossover you’ll get great performance, ultra low-noise, rugged reliability, and four decades of dbx knowledge and expertise in building the world’s finest processors. The 223xs uses precision filters to separate the audio signal and direct the correct frequencies to your loudspeaker drivers. By directing only the specific frequency bands to each speaker driver, the 223xs leaves your amplifiers free to use their full power on the usable signal, eliminating distortion and providing your PA system with a cleaner and better sound.

The dbx 223xs is a dual channel crossover with all the features you would expect from a professional product. It includes Linkwitz-Riley 24dB per octave filters, independent output gain controls for level matching, output phase inversion, a 40 Hz low cut filter, and optional mono summing of the low frequency (subwoofer) output. Every aspect of its design exudes great precision from the solid “click” controls to the high-quality XLR inputs and outputs.

Key Features

Specification	Details

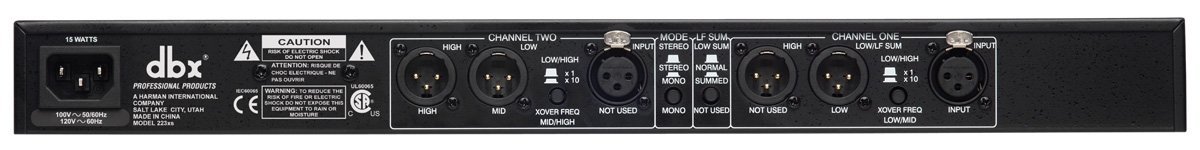

XLR Balanced Ins and Outs	Ensures maximum signal integrity and minimal noise.
Mode Switch for Operation	Stereo 2-way or mono 3-way operation modes for versatile use.
Low Frequency Summed Output	Provides an optional subwoofer output for enhanced low-frequency performance.
x10 Range Switch	Allows flexibility in crossover frequency settings on both channels.
40Hz Low Cut Filter	Removes unwanted low frequencies to enhance clarity.
Phase Reverse Switch	Available on all outputs for perfect phase alignment.
Individual Level Controls	On all outputs for precise level matching.
24dB per Octave Linkwitz-Riley Filters	Professional standard filtering for superior sound quality.
Stereo/Mono Status LEDs	Indicates the selected operation mode for easy monitoring.
2 Year Parts and Labor Warranty	Standard dbx® support for peace of mind.
CSA NRTL/C Approved	Complies with North American safety standards.
CE Compliant	Meets European safety and environmental standards.
