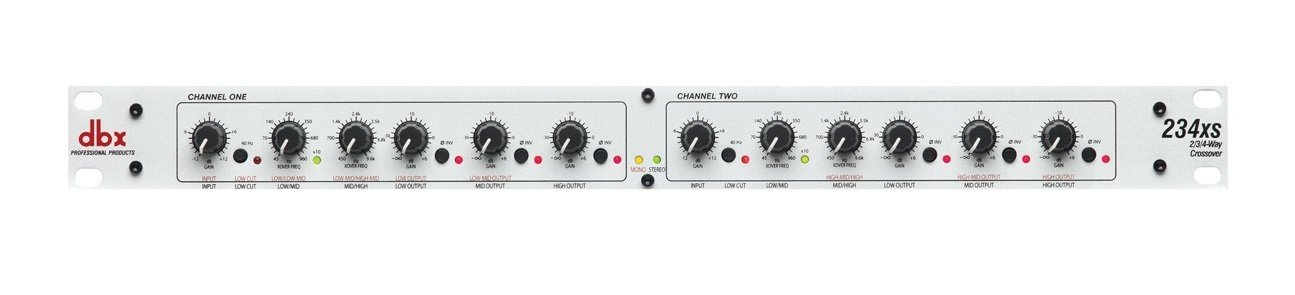

The dbx 234xs is a dual channel crossover packed with professional-grade features for unparalleled audio precision. It integrates Linkwitz-Riley 24dB per octave filters, independent output gain controls, output phase inversion, a 40 Hz low cut filter, and the option to sum the low frequency output for mono subwoofers. This meticulously designed device ensures great sound quality with solid operational controls and high-end XLR inputs and outputs.

Optimize your speaker system with the impeccable precision of the dbx® 234xs Crossover. Renowned for its performance, ultra-low noise, and rugged reliability, this crossover employs precise filters to segregate and direct audio signals to the appropriate loudspeaker drivers. By channeling specific frequencies to each driver, the 234xs allows amplifiers to maximize power efficiency and minimize distortion, resulting in cleaner and superior sound for your PA system.

Features

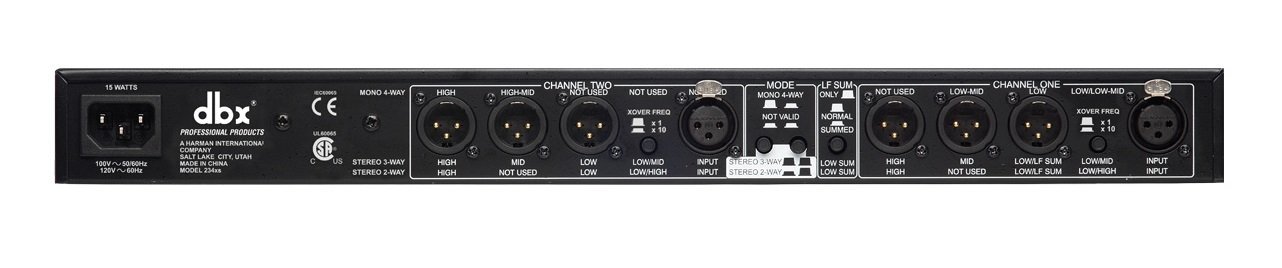

• XLR balanced inputs and outputs
• Switchable for mono 4-way or stereo 2-way/3-way modes
• Summed low frequency (subwoofer) output
• x10 range switch on both channels
• 40Hz high-pass (low cut) filter on both channels
• Phase reverse switch on all outputs
• Individual output level controls
• 24dB per octave Linkwitz-Riley filters
• Stereo/Mono mode indicator LEDs
• Covered by dbx® 2-year parts and labor warranty
• CSA NRTL/C approved
• CE compliant

Key Specifications
