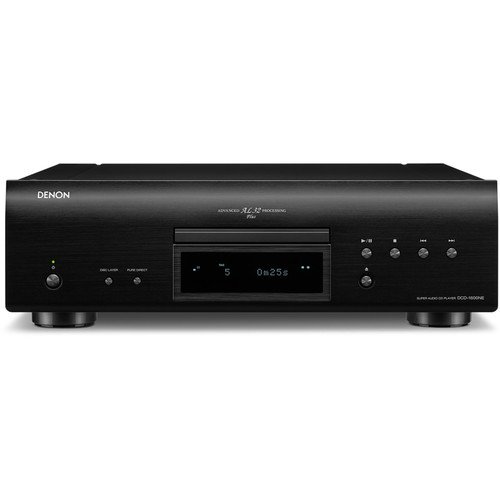

Denon DCD-1600NE Super Audio CD Player

Experience a new dimension of audio with the Denon DCD-1600NE Super Audio CD Player. This versatile player supports an extensive range of disc types including SACD, MP3, and DVD±R/RW, and can handle numerous audio formats such as MP3, WMA, AAC, WAV, FLAC, and more. Enjoy high-resolution audio playback, with support for DSD (2.8/5.6 MHz) and files up to 192 kHz/24-bit recorded on DVD±R/RW as well as CD-R/RW discs. Features like Pure Direct Mode ensure a pristine audio output, making it an ideal choice for audiophiles seeking sonic excellence.

Advanced Features

AL32 Processing Plus

The DCD-1600NE is equipped with Denon’s AL32 Processing Plus, a sophisticated analog waveform reproduction technology which utilizes data interpolation algorithms to restore data lost during digital recording. This results in playback sound that is detailed, expressive, and extremely faithful to the original audio.

SVH Mechanism

The onboard disc drive features Denon’s S.V.H. (Suppress Vibration Hybrid) Mechanism, designed to stabilize the disc drive and minimize unwanted vibrations. This ensures that digital signals are read with enhanced accuracy, facilitating improved sound reproduction.

Direct Mechanical Ground Construction

To prevent internal and external vibrations from affecting the audio output, the DCD-1600NE uses Direct Mechanical Ground Construction. The design places the power transformers and drive mechanism strategically to effectively absorb and minimize vibrations, ensuring the integrity of musical signals.

DAC Master Clock Design

For precise digital to analog conversion, the DAC Master Clock Design synchronizes digital circuits by positioning the clock immediately adjacent to the D/A converter. This helps reduce jitter and phase noise, ensuring high fidelity audio output.

Short Signal Paths & Separate Power Transformers

The layout of the circuit patterns is carefully designed for the shortest signal paths to ensure a clean and transparent sound. Separate power transformers for digital and analog circuits minimize mutual interference and noise, enhancing audio quality.

Specifications

Specification	Details
Supported Disc Types	CD, CD-R, CD-RW, SACD, DVD+R, DVD+RW, DVD-R, DVD-RW
Supported Formats	AAC, AIFF, DFF, DSF, FLAC, M4A, MP3, WAV, WMA
Frequency Response	2 Hz to 50 kHz -3 dB (SACD), 2 Hz to 20 kHz (CD)
Frequency Range	2 Hz to 100 kHz (SACD), 2 Hz to 20 kHz (CD)
Dynamic Range	112 dB (SACD), 101 dB (CD)
Signal to Noise Ratio	117 dB (CD), 119 dB (SACD)
Max Sample Rate/Resolution	44.1 kHz (CD), 2.8 MHz (SACD)
Total Harmonic Distortion (THD)	0.0016% @ 1 kHz (CD), <0.001% @ 1 kHz (SACD)
Bit Rates	32 to 320 kb/s
Number of Channels	2
Rated Output / Impedance	2 V / 10 Kilohms

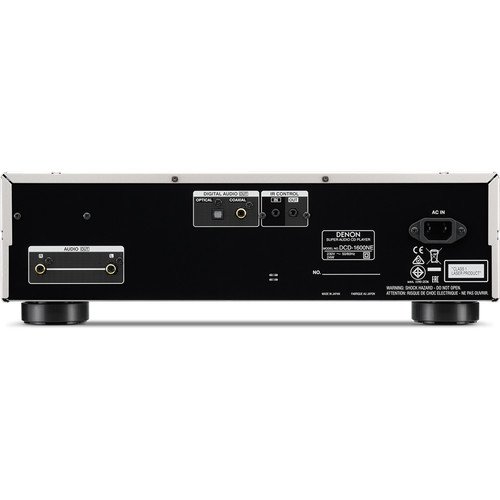

Audio Outputs	1 x TOSLINK Optical, 1 x Digital Coaxial, 1 x RCA Stereo (L/R)
Other I/O	1 x 1/8″ / 3.5 mm (IR) Input, 1 x 1/8″ / 3.5 mm (IR) Output
AC Input Power	120 VAC, 60 Hz
Power Consumption	0.1 W (Standby), 24 W
Dimensions (W x H x D)	17.1 x 5.3 x 13″ (434 x 135 x 329 mm)
Weight	18.1 lb (8.2 kg)
Package Weight	22.75 lb
Box Dimensions (LxWxH)	22 x 18 x 10″
