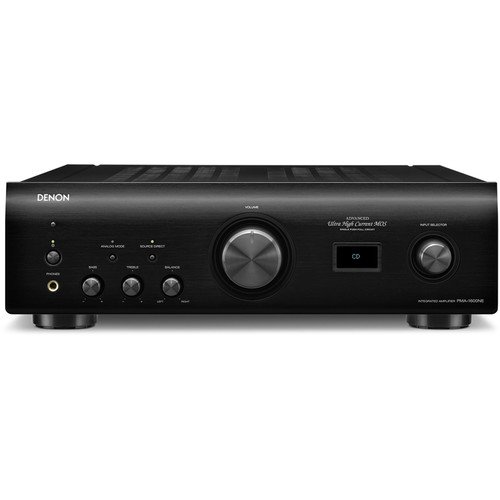

Denon PMA-1600NE Stereo Amplifier with DAC Mode for High-Resolution Audio
The Denon PMA-1600NE Stereo 140W Home Theater Power Amplifier delivers 70W per channel at 8 Ohms, features a six-block chassis for reduced interference, and incorporates Advanced AL32 DAC for high-resolution audio. It supports digital inputs via two optical, one coaxial, and one USB Type-B, along with three stereo RCA and a switchable MM/MC phono input for versatile connectivity, and includes a remote control.
- Estimated Delivery : Up to 3 business days
- Free Shipping & Returns : On all orders over AED 1000
Enjoy high-resolution stereo sound with the Denon PMA-1600NE Stereo 140W Home Theater Power Amplifier. It outputs up to 70W per channel at 8 Ohms and features a six-block chassis design to help isolate the internal components to minimize interference. Its integrated DAC utilizes Advanced AL32 digital audio processing to play PCM files up to 384 kHz/32-bit, with enhanced dynamic range and resolution in the low range.
The PMA-1600NE allows you to input digital audio signals via two optical, one digital coaxial, and one USB Type-B input. Three stereo RCA inputs let you connect analog devices, and the MM/MC switchable phono input enables connectivity with a variety of record players. The PMA-1600NE includes a remote control as an added convenience.
Features
- Advanced UHC (Ultra High Current)-MOS technology for superior sound quality
- Advanced AL32 Processing Plus for smooth and detailed sound
- USB DAC supporting 11.2 MHz DSD and 384 kHz/32-bit PCM
- Six-block chassis configuration for reduced interference

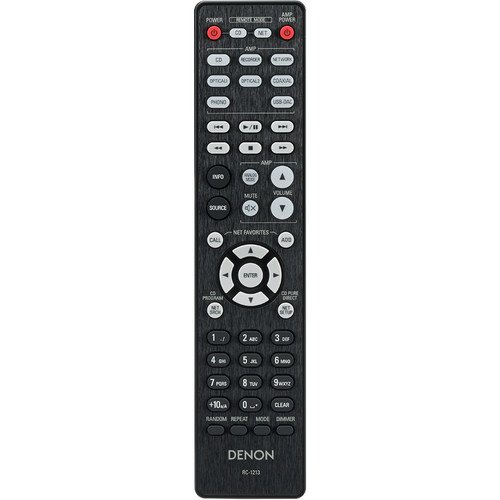

- Remote control and clear view front display
- Digital isolator and Analog Mode for eliminating noise
- MM/MC phono equalizer for high purity sound
Specifications
| Type | Integrated Amplifier (Preamp/Power Amp Combo) |
| Channels | 2.0 |
| Power Output per Channel | 70 W at 8 Ohms / 20 Hz to 20 kHz / 0.07% THD, 140 W at 4 Ohms / 1 Hz / 0.7% THD |
| Frequency Response | 5 Hz to 100 kHz +0/-3 dB |
| THD | 0.01% (8 Ohms, 1 kHz, Rated Output -3 dB) |
| Speaker Impedance | 4 to 16 Ohms |
| Tone Control | Bass (100 Hz): ±8.0 dB, Treble (10 kHz): ±8.0 dB |

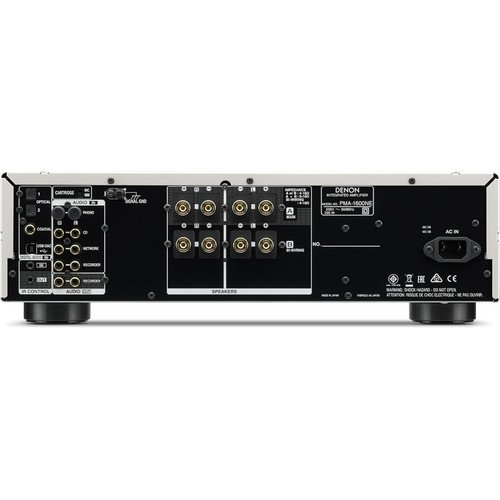

| Rear A/V Inputs | 2 x Optical TOSLINK, 1 x Digital Coaxial, 1 x USB Type-B, 3 x Stereo RCA, 1 x Stereo RCA (Phono MC/MM) with Ground Screw |
| Rear A/V Outputs | 1 x Stereo RCA |
| Front I/O | 1 x 1/4″ / 6.35 mm Headphone Output |
| Other Rear I/O | 1 x 1/8″ / 3.5 mm (IR) Input, 1 x 1/8″ / 3.5 mm (IR) Output |
| Speaker Connectors | 4 x Binding Post Pair |
| Input Impedance | Phono (MC): 100 Ohms, Phono (MM): 47 Kilohms, Line: 47 Kilohms (Source Direct Off), 23 Kilohms (Source Direct On) |
| Input Sensitivity | Phono (MC): 0.2 mV, Phono (MM): 2.5 mV, Line: 125 mV |
| Max Input Level | Phono (MC): 10 mV (1 kHz), Phono (MM): 130 mV (1 kHz) |
| Phono RIAA EQ Deviation | ±0.5 dB (20 Hz to 20 kHz) |
| Signal to Noise Ratio | Phono (MC): 74 dB (0.5 mV Input), Phono (MM): 89 dB (5 mV Input), Line: 108 dB |
| Wi-Fi | None |
| Bluetooth | None |
| AC Input Power | 120 VAC, 60 Hz |
| Power Consumption | Active: 295 W, Standby: 0.2 W |
| Dimensions (W x H x D) | 17.1 x 5.3 x 16.1″ / 434.0 x 135.0 x 410.0 mm |
| Weight | 38.8 lb / 17.6 kg |
| Brand | |
|---|---|
| EAN |
