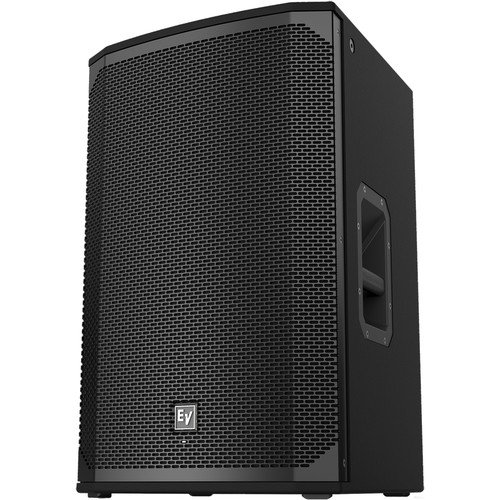

Electro-Voice EKX-15P Powered Loudspeaker

The Electro-Voice EKX-15P powered two-way loudspeaker features a robust 15″ woofer and a 1″ titanium compression driver. Boasting 1500W of Class D amplification and integrated with QuickSmartDSP technology, it is ideal for live music, lectures, and nightclub sound systems.

Advanced Audio Management

Navigate numerous audio settings effortlessly using the LCD-based menu and single-knob interface. Customize your sound with room presets, comprehensive EQ controls, and user-programmable recall. The system offers visual monitoring of the limiter, input metering, and master volume for precise gain control.

Exceptional Sound Performance

The EKX-15P delivers a frequency response range of 48 Hz to 20 kHz and achieves up to 134 dB SPL. An intelligent thermal-management system with variable fan speed, controlled by onboard sensors, ensures consistent performance. The SST waveguide design ensures clear coverage, while Cardioid Control Technology helps in reducing stage noise by managing the audio signal direction.

Durable and Versatile Build

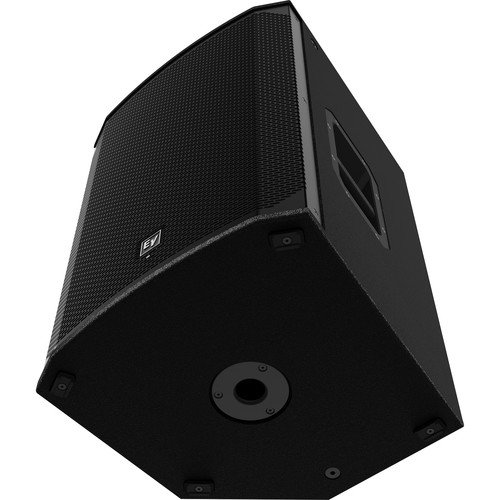

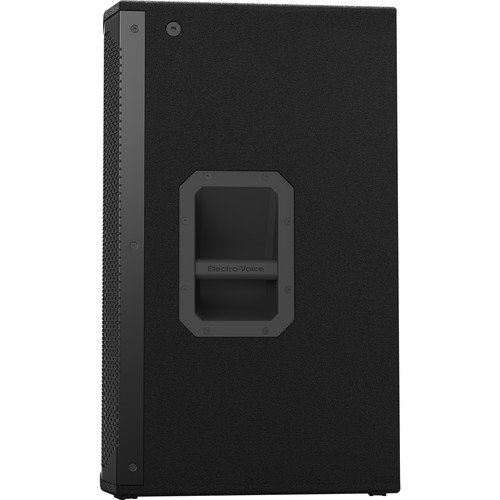

The speaker is housed in a 15-mm wooden enclosure with internal bracing, featuring an EVCoat finish and a durable steel grille. It includes eight M10 threaded mounting points, aluminum pole mounts, and reinforced handles for easy transport and mounting options.

Specifications

Specification	Details
Configuration	Active 2-Way
Total Power Capacity	1500 W
HF Driver	1 x 1″ / 25.4 mm Titanium Compression Driver
LF Driver	1 x 15″ / 38.1 cm Woofer
Frequency Response	48 Hz to 20 kHz (-10 dB), 55 Hz to 18 kHz (-3 dB)
Maximum SPL	134 dB
Coverage Angle	90° H x 60° V

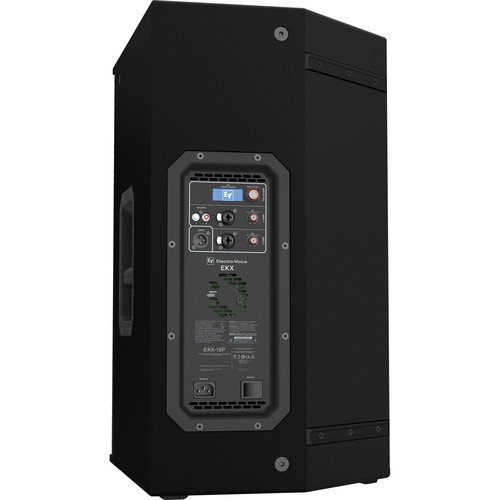

Audio I/O	1 x Stereo RCA Input, 2 x Combo XLR-1/4″ TRS Input, 1 x XLR 3-Pin Thru/Output
Crossover	1.7 kHz
Current Consumption	1.8 A (1/8 Power)
Mounting	8 x M10
Construction Material	Metal Grille, Plywood
Dimensions	27 x 17 x 16.9″ / 68.5 x 43.2 x 42.9 cm
Weight	54 lb / 24.4 kg
Package Weight	59 lb
Box Dimensions (LxWxH)	30 x 20 x 20″
