Genelec 7382AP Smart Active Subwoofer – Black Painted Finish

Genelec 7382AP Professional Active Subwoofer

The Genelec 7382AP is a professional, active subwoofer designed to extend the bass reproduction of active loudspeakers. With flexible calibration and bass-management features, it easily integrates into environments requiring analog or digital interfacing, for sound systems ranging from simple stereo to 40+ channels of immersive audio in large recording studios, film mixing facilities, mastering suites, post-production houses, clubs, or high-end home theaters.

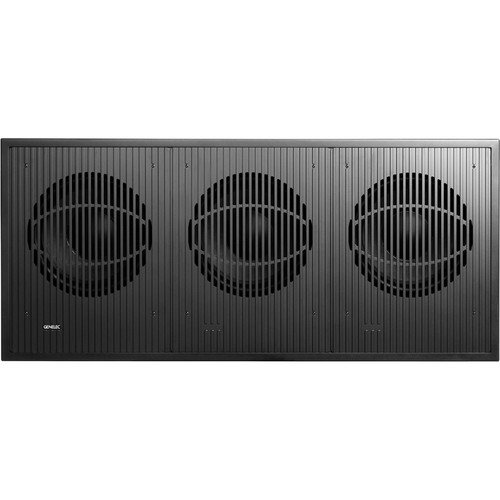

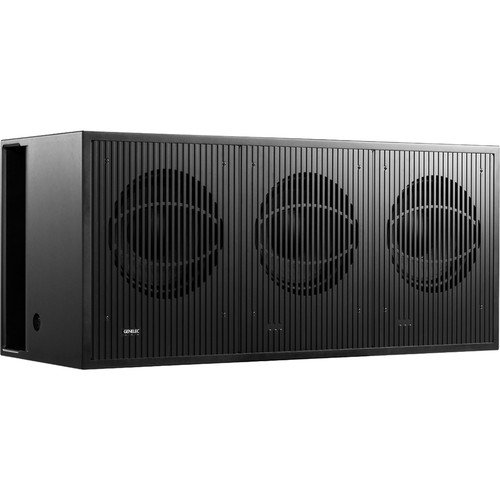

The 7382AP’s rugged, wood fiberboard enclosure houses three custom-designed 15″ long-throw woofers, which deliver high SPL up to 130 dB, with low distortion and minimal power compression. Combined with a laminar-flow, bass-reflex port, the subwoofer provides precise bass articulation at frequencies down to 15 Hz.

Electronics are integrated in the RAM-SW remote amplifier module, individually calibrated to match the supplied subwoofer. The module contains active crossover filters, digital signal processing algorithms, overload protection, and a 2500W, Class-D amplifier. Analog and AES/EBU digital I/O, as well as a separate LFE (Low Frequency Effect) analog input offer a set of flexible connectivity options, which support distributed bass-management technology.

As part of the SAM Series of subwoofers, the 7382AP integrates with the Genelec Loudspeaker Manager (GLM) software (free download available separately), via which it can be calibrated, configured, and controlled to compensate for detrimental room/acoustic anomalies, solve issues of subwoofer placement, and obtain a flat frequency response. Built to withstand the rigors of professional use, the 7382AP’s electronics, drivers, and enclosure were designed, assembled, tested, and individually calibrated in the Genelec factory in Iisalmi, Finland.

Rugged Cabinet

Specification	Details
Material	High-quality wood fiberboard
Design	Heavily braced to eliminate structural resonances and vibration
Handles	Four integrated handles for easy maneuverability

Custom-Designed 15″ Woofers

Specification	Details
Configuration	Three 15″ long-throw, magnetically shielded woofers
Performance	High SPL with low distortion and minimal power compression

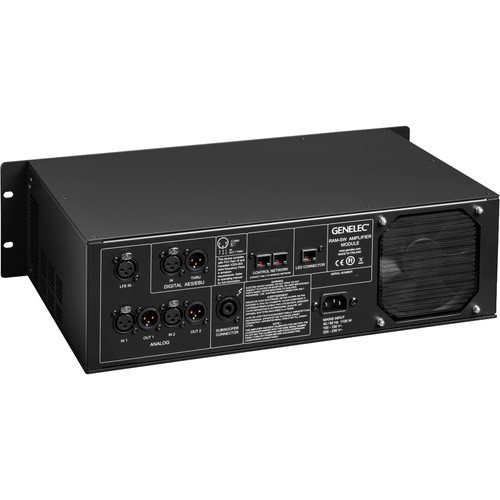

RAM-SW Remote Amplifier Module

Specification	Details
Installation	Remote design for flexible installation
Calibration	Individually calibrated to match supplied subwoofer
Connection	NL4 speakON input connector
Cooling	Temperature-controlled forced-air cooling
Height	3 RU

Genelec-Designed Class-D Amplifiers with SMPS

Specification	Details
Output	High output with universal mains input voltage

Quality Electronic Design

Specification	Details
DSP Algorithms	High dynamic range and low self-generated noise

Smart Active Monitor (SAM) System

Specification	Details
Features	Total system control and automated room-calibration
Software	GLM software for configuration, calibration, and control

Distributed Bass Management

Specification	Details
Function	Divides input audio signal into low-frequency and high-frequency at subwoofer crossover
Crossover Frequency	Adjustable from 50 Hz to 100 Hz in 5 Hz increments
Adjustment	Via the GLM software

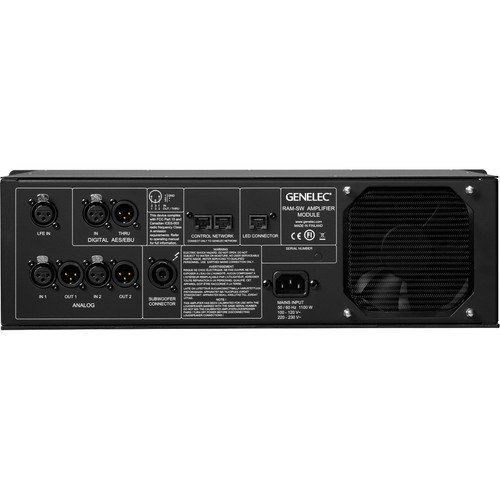

Versatile Connectivity

Specification	Details
Analog Inputs	2 x XLR balanced audio, 1 x XLR balanced LFE
Analog Outputs	2 x XLR balanced audio
Digital Input	1 x XLR AES/EBU (stereo signal)
Digital Output/Thru	1 x XLR AES/EBU
GLM Control Network Connectors	2 x RJ45
Amplifier Module to Subwoofer Cabinet	SpeakON connector

Sustainability and Green Values

Specification	Details
Material Use	Efficient
Energy Consumption	Low
Design	Extended lifetime
