Name: JBL Control 12C/T 3" 40W Passive Ceiling Loudspeaker - Black (Single)
Brand: JBL Professional
SKU: CONTROL 12C/T-BK
Availability: InStock

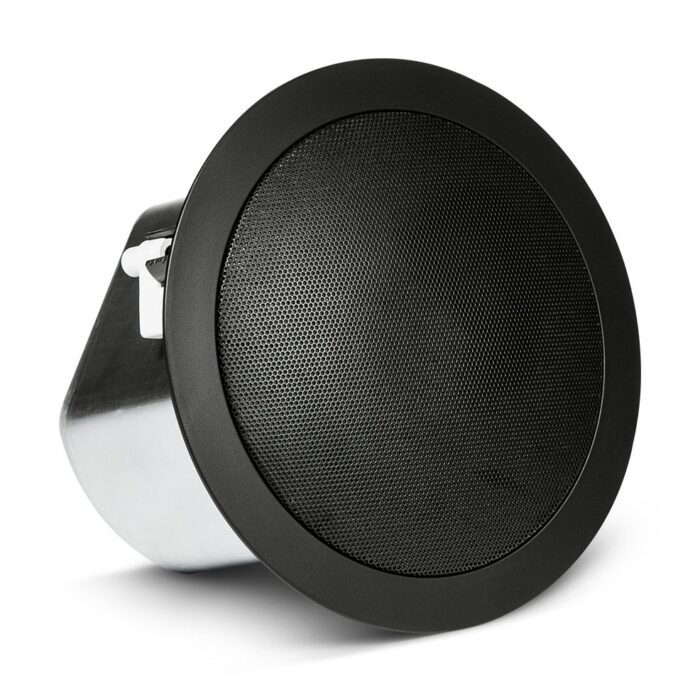

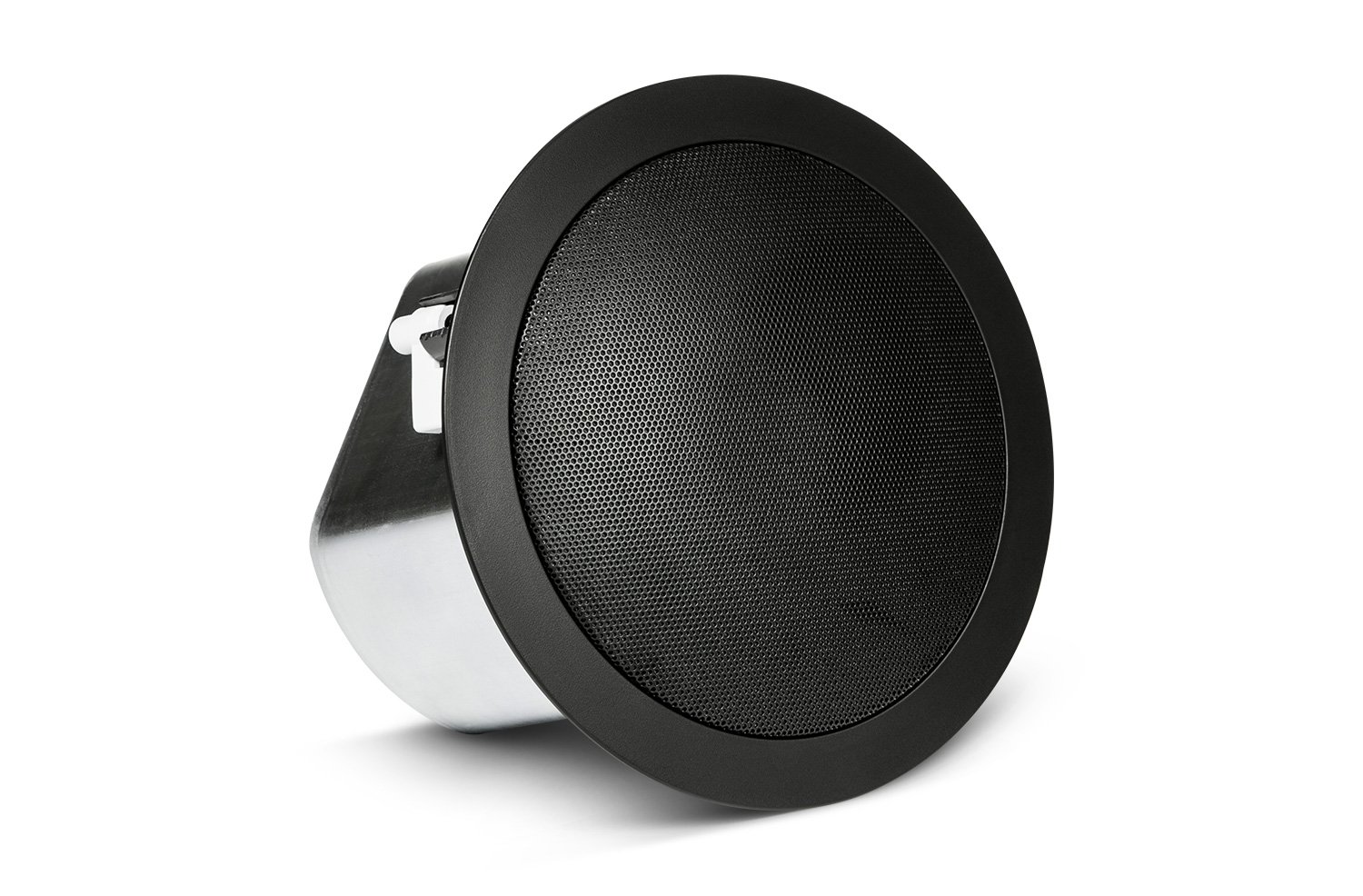

JBL Control 12C/T 3″ 40W Passive Ceiling Loudspeaker – Black (Single)

AED 478095

The Control 12C/T is a full-range ceiling speaker featuring a 76 mm (3 inch) wide-bandwidth cone driver in a vented, paintable baffle made of UV resistant UL94-V0 material, with a preattached blind-mount backcan for easy installation.

In stock

Estimated Delivery : Up to 3 business days
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

Control 12C/T Ceiling Speaker

The Control 12C/T is a robust, full-range ceiling speaker designed to provide superior audio quality in a variety of environments. It features a 76 mm (3-inch) wide-bandwidth cone driver housed in a sturdy, paintable baffle made of UV-resistant UL94-V0 material. With its pre-attached blind-mount backcan, installation is both quick and easy.

Key Features

Specification	Details
Driver	76 mm (3 in) full-range driver
Installation	Blind-mount backcan for quick and easy install
Operation	Combined 70V/100V and low impedance direct operation (20 Watts at 8Ω nominal setting, 15W multi-tap at 70V/100V)
Bandwidth	68 Hz – 17 kHz with wide 130° coverage
Frequency Range (-10dB)	68 Hz – 17 kHz
Power Rating	40 Watts Continuous Program Power 20 Watts Continuous Pink Noise (80W peak), 100 hr
Transformer Taps	15 W, 7.5 W, 3.8 W @ 70V and 100V (& 1.9 W @ 70V only)
Frequency Response (±3 dB)	95 Hz – 15 kHz
Sensitivity	84 dB (1kHz – 16 kHz)
Coverage Angle	130° conical
Directivity Factor (Q)	9.8
Directivity Index (DI)	7.4 dB
Maximum SPL (1m)	97 dB (low-impedance, 103 dB peak) 96 dB (top 70V/100V tap)
Impedance	8 ohms (in direct/bypass 8Ω setting)
Driver Material	Polypropylene cone, butyl rubber surround, Kapton™ voice coil former, high temperature voice coil, aluminum coupling ring for low distortion and HF extension
Input Connectors	Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm²)
Strain Reliefs	Strain relief for two cables or two flex conduits via coupled clamping mechanism
Material	ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan
Compliance	UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant
Dimensions	196 mm diameter x 138 mm depth from back of baffle (7.7 in diameter x 5.4 in depth)
Ceiling Cutout Size	170 mm (6.7 in) diameter (cardboard cutout template included)
Ceiling Thickness Range	Up to 35 mm (1.4 in) with stock dog-ears. Optional thick-ceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses.
Safety Seismic Attachment	One point, top surface
Net Weight	1.6 kg (3.5 lbs, one speaker)
Shipping Weight	6.7 kg (14.7 lbs, pair in master carton)
Included Accessories	C-ring support backing plate, 2 tile support rails, cutout template, paint shield, removable locking multi-pin connector, grille
Optional Accessories	New construction bracket, mud-ring construction bracket, thick-ceiling dog-ears, tile rail for 1200 mm (4 ft) tile spans
Color Options	White or Black
Backcan	Formed steel (included “blind-mount”)
Baffle/Rim	ABS baffle with UL94-V0 and UL94-5VB flame class fire rating
Plenum Usage	Yes, backcan included
