Ceiling Speakers

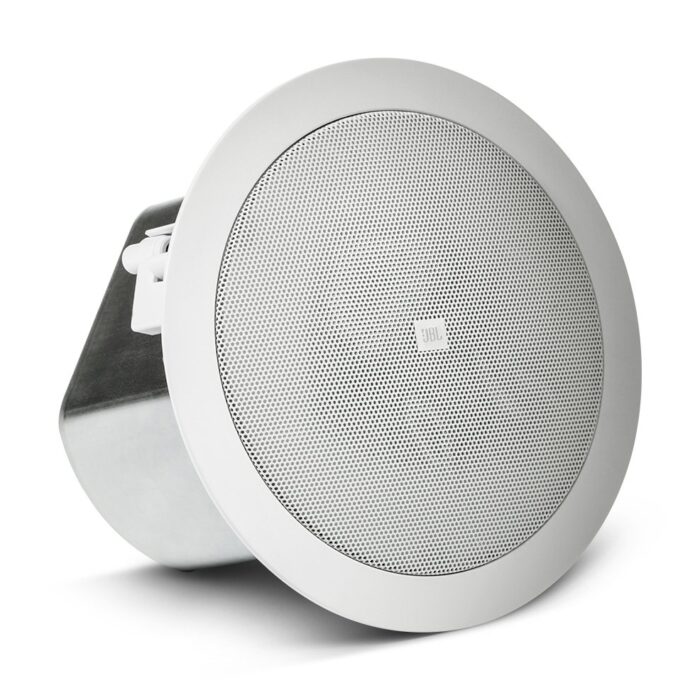

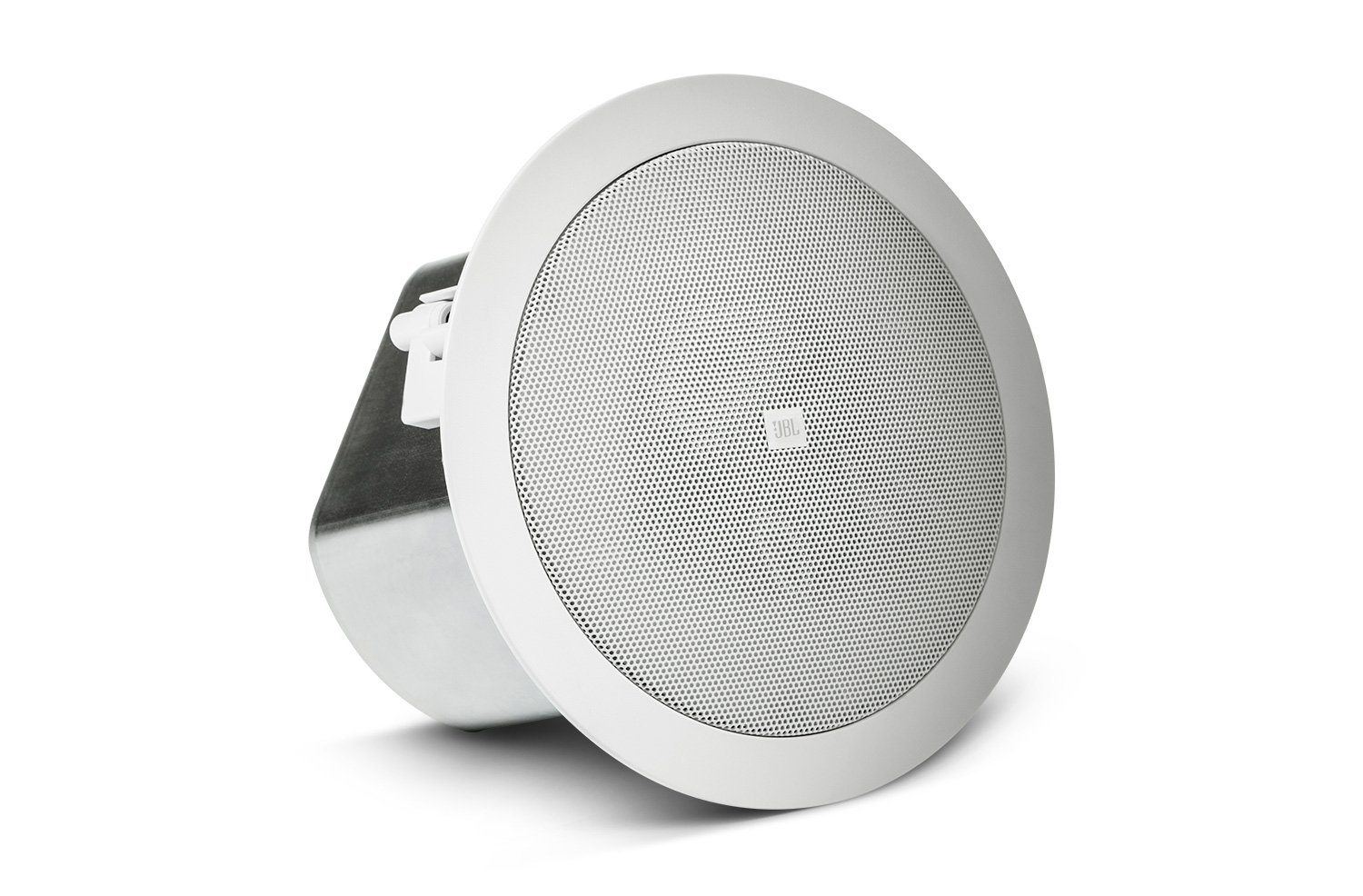

JBL Control 12C/T 3″ 40W Passive Ceiling Loudspeaker White (Single)

AED 478095

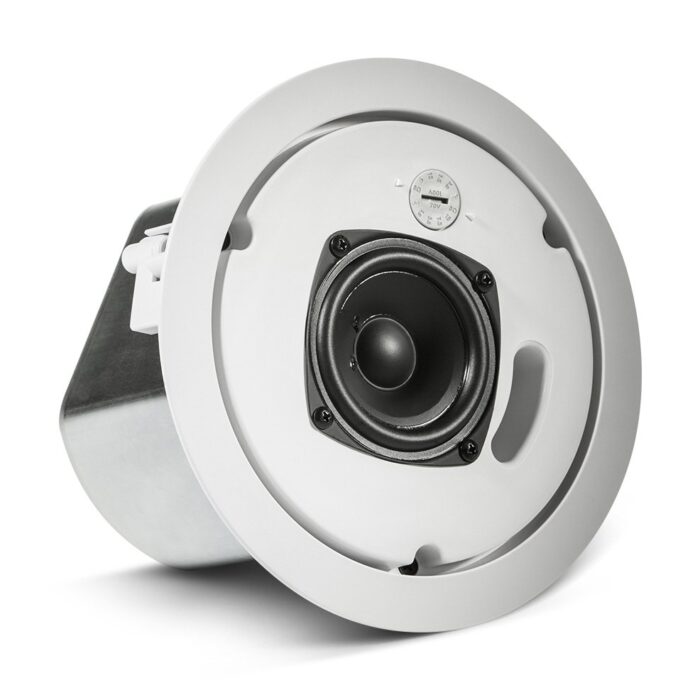

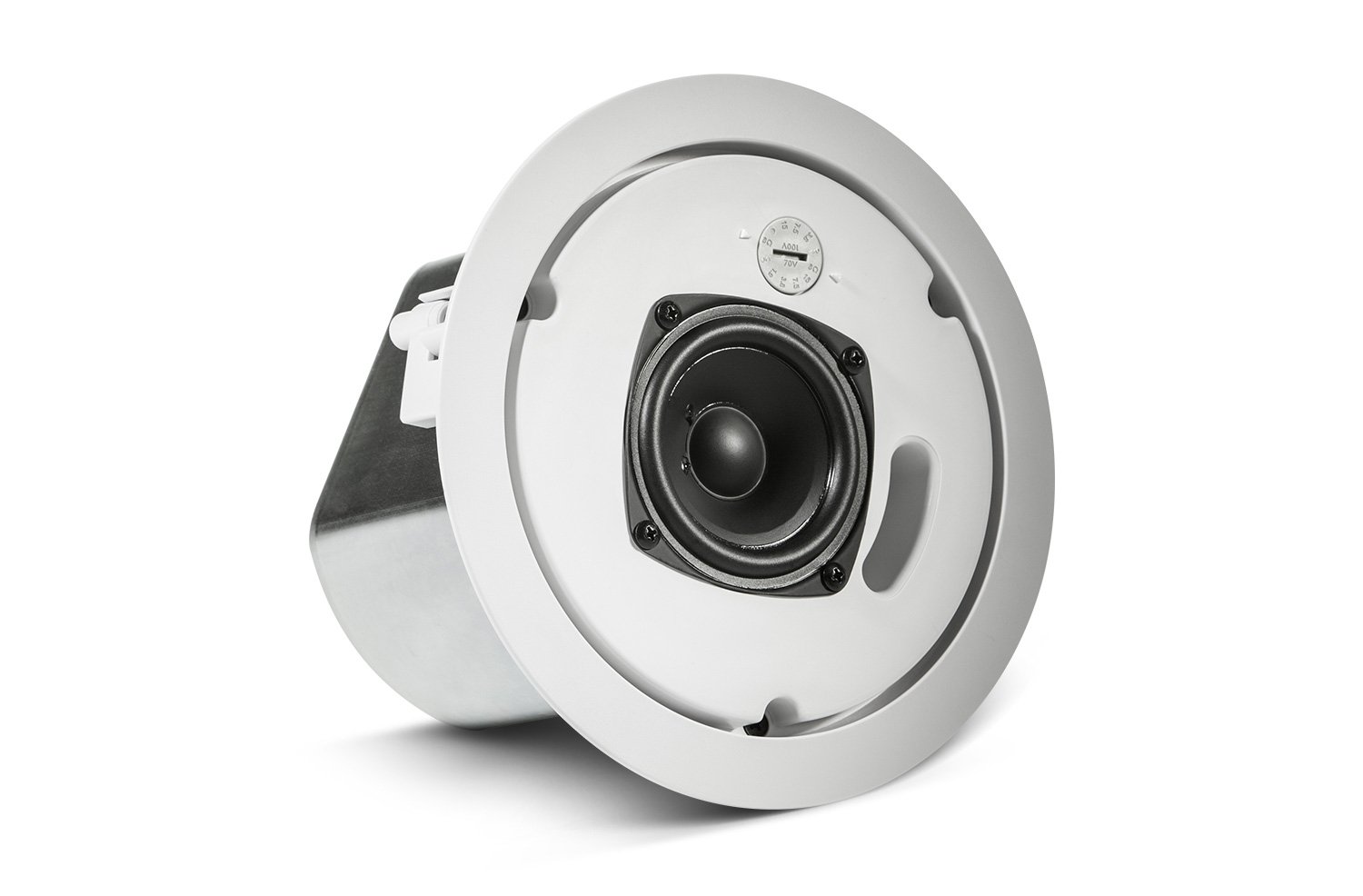

The Control 12C/T ceiling speaker features a 76 mm (3 inch) wide-bandwidth cone driver in a vented, UV-resistant UL94-V0 paintable baffle, with an integrated blind-mount backcan for effortless installation.

In stock
  • Check Mark Estimated Delivery : Up to 3 business days
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

Control 12C/T: Full-Range Ceiling Speaker

The Control 12C/T is a high-performance ceiling speaker designed to deliver exceptional sound quality with quick and easy installation. Featuring a 76 mm (3 inch) wide-bandwidth cone driver in a vented, paintable baffle, this speaker is suitable for various environments. The backcan is preattached for a swift setup, ensuring reliable sound performance.

Key Features

  • 76 mm (3 in) full-range driver
  • Quick and easy blind-mount backcan installation
  • Combined 70V/100V and low impedance direct operation
  • Wide 68 Hz – 17 kHz bandwidth with 130° coverage

Specifications

Specification Details
Frequency Range (-10dB) 68 Hz – 17 kHz
Power Rating 40 Watts Continuous Program Power, 20 Watts Continuous Pink Noise
Transformer Taps 15 W, 7.5 W, 3.8 W @ 70V and 100V (& 1.9 W @ 70V only)
Frequency Response (±3 dB) 95 Hz – 15 kHz
Sensitivity 84 dB (1kHz – 16 kHz)
Coverage Angle 130° conical
Directivity Factor (Q) 9.8
Directivity Index (DI) 7.4 dB
Maximum SPL (1m) 97 dB (low-impedance, 103 dB peak)
Impedance 8 ohms
Drivers 76 mm (3 inch) polypropylene cone, butyl rubber surround, high temperature voice coil
Input Connectors Removable locking 4-pin connector with screw-down terminals
Connector Wiring Pin 1 = + In; Pin 2 = – In; Pin 3 = + Loop Thru; Pin 4 = – Loop Thru
Strain Reliefs For two cables or two flex conduits
Materials ABS baffle with UL94-V0 fire rating
Safety Agency UL1480, UL2043, NFPA compliant
Dimensions 196 mm diameter x 138 mm depth
Ceiling Cutout Size 170 mm (6.7 in) diameter
Ceiling Thickness Range Up to 35 mm (1.4 in)
Net Weight 1.6 kg (3.5 lbs)
Shipping Weight 6.7 kg (14.7 lbs, pair in master carton)
Included Accessories C-ring, cutout template, paint shield, grille

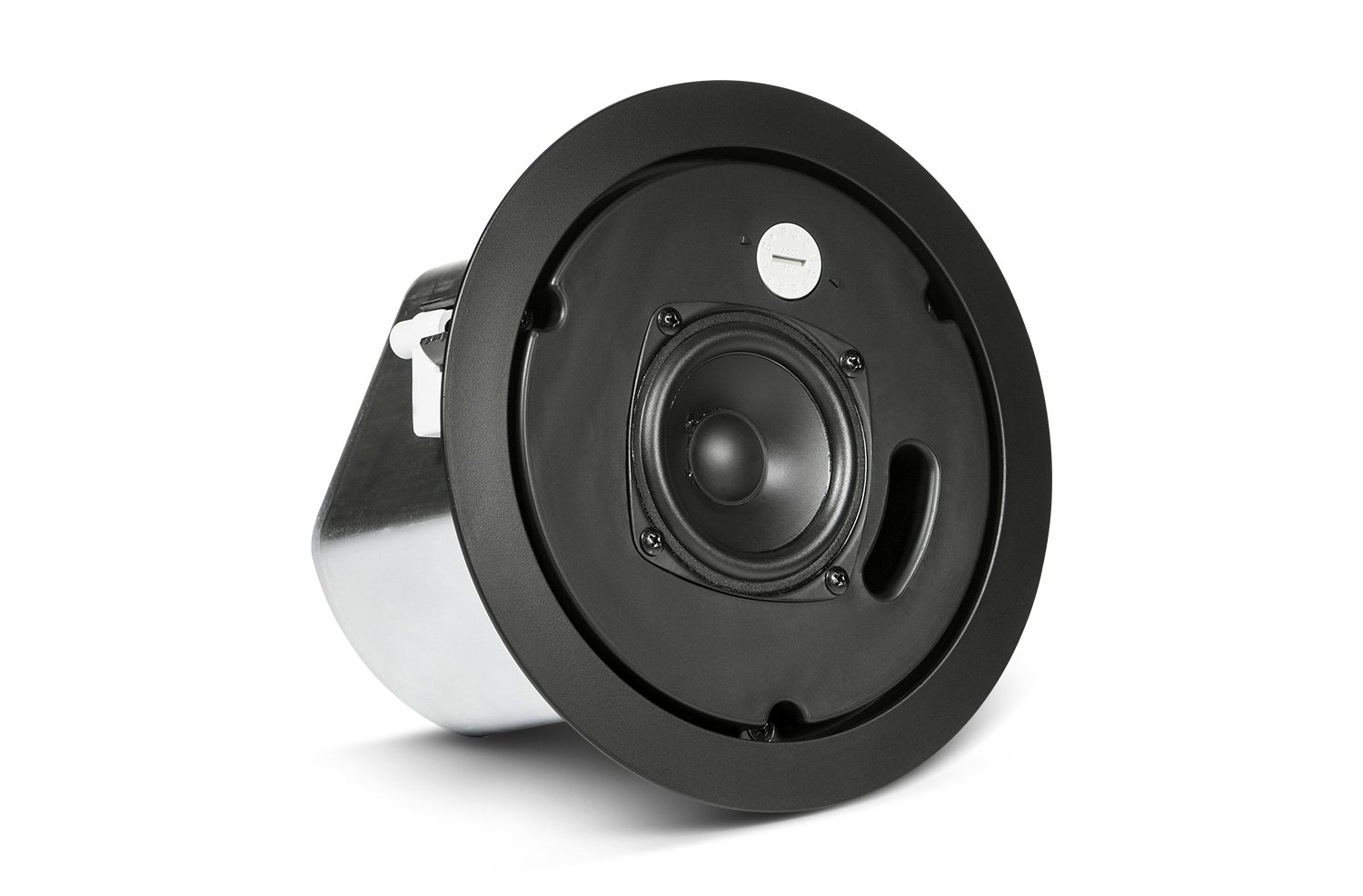

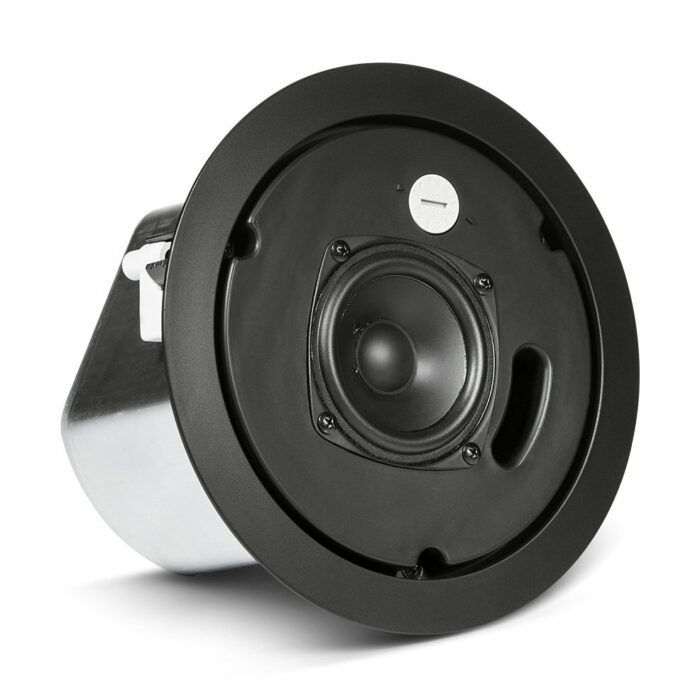

Color White or Black
Backcan Formed steel
Plenum Usage Yes, backcan included
