JBL CSM 28 Commercial Series Mixer with 8 Inputs and 2 Outputs

Name: JBL CSM 28 Commercial Series Mixer with 8 Inputs and 2 Outputs
Brand: JBL Professional
SKU: CSM28
Availability: InStock

AED 3085.71

The JBL CSM 28 Commercial Series Mixer provides eight inputs and two outputs, featuring Euroblock mic/line connectors, RCA inputs, and DIP switch configurable I/O routing. Ideal for varied applications such as background music and paging in settings like schools, hospitals, and restaurants, it includes illuminated volume, bass, and treble controls for ease of use. The mixer supports RJ45 connections for CSR-V in-wall controls and operates on a universal 100-240 VAC power supply, designed with energy-efficient standards and a space-saving design.

In stock

Estimated Delivery : Up to 3 business days
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

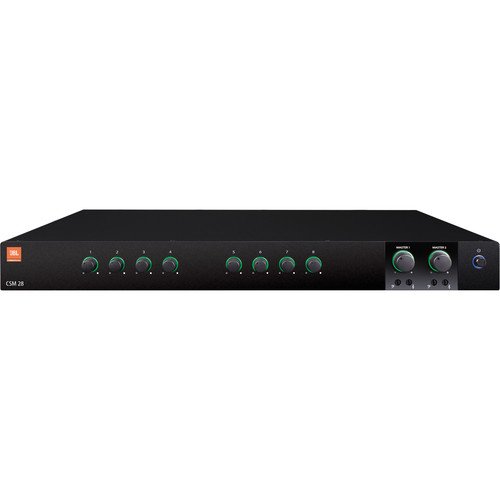

JBL CSM 28 Commercial Series Mixer

The JBL CSM 28 is a versatile commercial mixer designed to support a wide range of audio applications, including background music, security, and paging across various venues like schools, hospitals, restaurants, and fitness centers. Its design integrates advanced technology from multiple Harman brands to ensure reliable performance and ease of use.

This mixer is equipped with Euroblock type mic/line input and output connectors, along with unbalanced RCA inputs. The built-in illuminated rings enhance usability in low-light scenarios for volume, bass, and treble adjustments, while the rear DIP switches offer flexible input/output routing.

The CSM 28 also features RJ45 connectors for seamless integration with CSR-V in-wall volume controls (sold separately) and includes a universal power supply compatible with global AC voltages.

Key Features

Specification	Details
Form Factor/Type	Tabletop
Number of Channels	8 Input / 2 Output
Frequency Response	20 Hz to 20 kHz ± 1 dB
Input Sensitivity	Mic: 3 mVrms, Line: 300 mVrms, RCA: 300 mVrms
I/O Impedance	Mic Input: 400 Ohms, Line Input: 20 Kilohms, RCA Input: 50 Kilohms
Output Level	Line Output: 5 Vrms (10-Kilohm Load)
SNR	> 90 dB
THD	0.05%
Crosstalk	> 70 dB
EQ	Bass: ± 10 dB at 100 Hz, Treble: ± 10 dB at 10 kHz
Ducking/Muting	Yes
Phantom Power	27 VDC
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	68 to 185°F / -20 to 85°C
Operating Humidity	0 to 95% (Non-Condensing)
Dimensions	17.2 x 1.7 x 11.9″ / 437 x 43.3 x 303.4 mm
Weight	7.5 lb / 3.4 kg
Package Weight	11.3 lb
Box Dimensions (LxWxH)	20.5 x 16.4 x 5.1″
