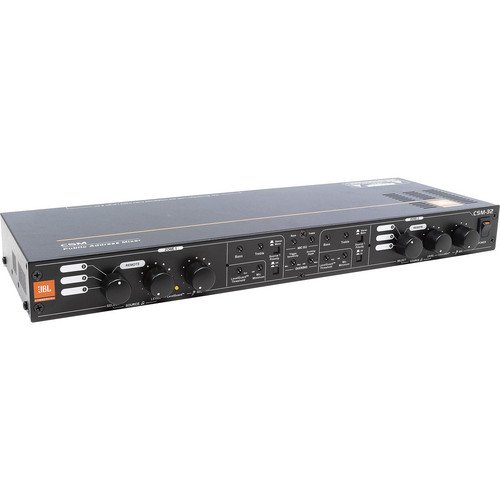

JBL CSM-32 3×2 Stereo Public Address Mixer

Name: JBL CSM-32 3x2 Stereo Public Address Mixer
Brand: JBL Professional
SKU: CSM32V
Availability: InStock

AED 3657.14

The JBL CSM-32 3 x 2 Stereo Public Address Mixer is designed for conferencing, retail, and hospitality, featuring three stereo music inputs with equalizers, one line input for alarm integration, and a microphone input with phantom power and a ducker. It includes two stereo outputs, active crossovers, subwoofer outs, a mono output for hold systems, and an analog control panel with a security plate. Compatible with CSR remote controllers, the unit supports expansion with additional CSM mixers via Cat5 for versatile commercial sound applications.

In stock

Estimated Delivery : Up to 3 business days
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

JBL CSM-32 3 x 2 Stereo Public Address Mixer

Enhance your conferencing, retail, and hospitality audio experience with the JBL CSM-32 Mixer, designed to deliver pristine sound and versatile functionality for various commercial settings.

This digital commercial mixer comes equipped with three stereo music inputs featuring bass and treble equalizers, plus a dedicated line input for alarm system integration. Additionally, it includes a microphone input that supports phantom power and features gain control and a ducker to automatically lower the music volume during announcements.

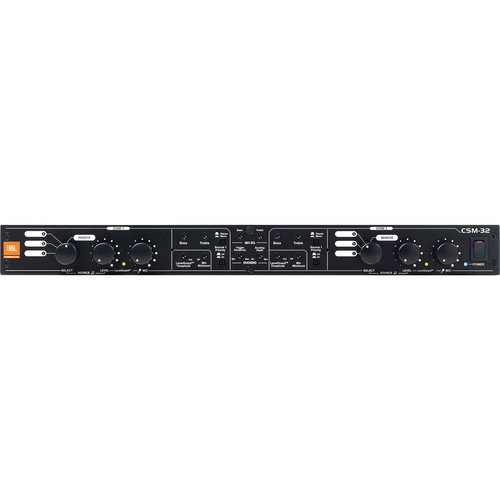

The JBL CSM-32 offers two stereo outputs with zone equalizers and active crossovers, each with its own subwoofer output. It also provides a music-only mono output to cater to telephone music-on-hold systems. The mixer is simple to operate with its analog-style control panel, and offers remote control options through CSR remote controllers for both source selection and volume adjustment per zone.

Key Features

Three stereo music inputs with bass and treble equalizers
Microphone input with phantom power, gain control, and a ducker
Two stereo outputs with zone equalizers and active crossovers
Music-only mono output for telephone systems
Simple analog control panel with optional remote control compatibility
LevelGuard for optimized signal compression
AutoWarmth for automatic tonal balance adjustment
Source priority and hold features
Limiter to prevent signal clipping
Switchable mono and stereo output
Adjustable music ducking for announcements

Specifications

Specification	Details
Line Inputs	3 x stereo, unbalanced RCA connectors
Nominal Sensitivity	-10 dBV
Input Impedance	20 kΩ
Maximum Input	+12 dBu
Equalization	Bass ±10 dB @ 80 Hz, Treble ±10 dB @ 8 kHz, 6 dB/octave shelf
Mic Type	1 x balanced, 0.2″ (5.08 mm) Euroblock connector
Mic Input Impedance	2 kΩ
Mic Noise	EIN <117 dB, 150 Ω, DSP band-limited 120 to 8,000 Hz, BW24
Mic Maximum Input	+20 dBu
Mic Equalization	Bass ±6 dB @ 250 Hz, Treble ±6 dB @ 2 kHz, 6 dB/octave shelf
CMRR	>40 dB, typically >55 dB @ 1 kHz
Preamp Overall Gain	+30 dB to +60 dB adjustable
Phantom Power	+48 VDC, 10 mA
Output Type	2 x stereo (Left, Right, Sub) balanced 1/8″ (3.5 mm), Euroblock connector
Output Impedance	120 Ω balanced
Maximum Output Level	+20 dBu
Crossover Frequencies	Left and Right in: 125 Hz high-pass (BW24), Sub in: 125 Hz low-pass (BW24), Left and Right out: 20 to 20,000 Hz, Sub out : 20 to 20,000 Hz (mono summed)
LED Indicators	Source inputs: Signal present LED (turns on at -20 dBu), Signal clip LED (turns on at +10 dBu), Mic input: Signal present LED (turns on at -20 dBu), Signal clip LED (turns on at +18 dBu)
System Performance
Frequency Response	20 to 20,000 Hz, ±0.1 dB
Dynamic Range	104 dB, A-weighted, 20 to 20,000 Hz
Converter	Mic input implements dbx Type IV conversion system
Sample Rate	48 kHz
Crosstalk	>75 dB
THD & Noise	0.005% typical at +4 dBu, 20 to 20,000 Hz, 0 db gain

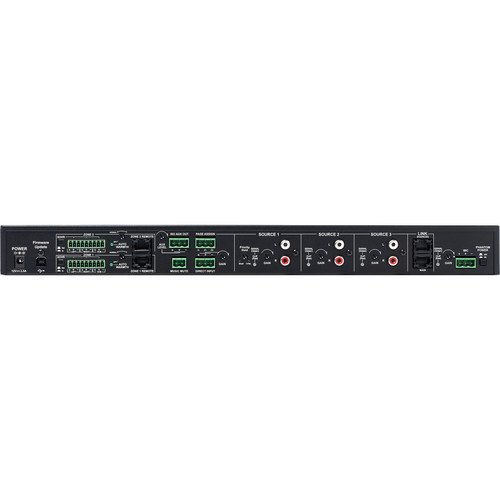

Rear Panel Connections
Direct Inputs	1 x Balanced, 1/4″ (5.08 mm) Euroblock connector, Input impedance: 10 kΩ, Maximum input: +20 dBu, Frequency response: 20 to 20,000 Hz
Mute	1 x 2-pin 1/4″ (5.08 mm) Euroblock connector, Connecting the pins mutes all source inputs, does not mute mic input.
Paging	1 x 2-pin 1/4″ (5.08 mm) Euroblock connector, Connecting zone pins to ground assigns page to that respective zone
Link	Source: 1 x RJ45 port requires CAT3 cable or higher with maximum length 7.9′ (2.4 m), Main: 1 x RJ45 port requires CAT3 cable or higher with maximum length 7.9′ (2.4 m)
USB	1 x USB Type B port for firmware updates
Power Consumption	10 W
Power Requirements	100 to 240 V thermal fuse in external transformer
Rack Mountable	Yes with included brackets
Dimensions	19.0 x 1.8 x 7.0″ (48.3 x 4.6 x 17.8 cm)
Weight	5.3 lb (2.4 kg)
