Lexicon BOB-32 BLU Link Breakout Box

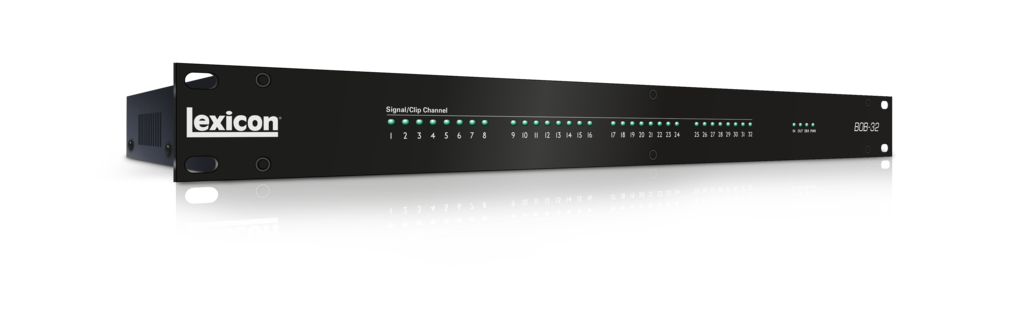

The Lexicon BOB-32 breakout box transforms up to 32 channels from the BLU link digital audio bus into analog audio, compatible with the QuantumLogic™ Immersion processor (QLI-32). It features rear-mounted DIP switches for easy configuration of 32 consecutive channels from the 256 available on the BLU link. Front panel LEDs indicate signal presence and power status.
- Estimated Delivery : Up to 3 business days
- Free Shipping & Returns : On all orders over AED 1000
Lexicon BOB-32 Breakout Box

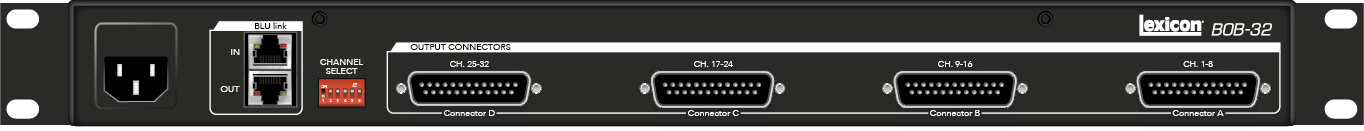

The Lexicon BOB-32 breakout box provides a reliable solution for converting up to 32 channels of the BLU link digital audio bus to analog audio, ensuring seamless integration with Lexicon’s QuantumLogic™ Immersion processor (QLI-32). Designed with practicality in mind, the BOB-32 features straightforward configuration through six rear-mounted DIP switches, allowing users to select 32 consecutive channels from a total of 256 available on the BLU link. The status of signal presence and power are readily visible via front panel LED indicators, enhancing operational clarity.
Key Features
- 32 analog audio outputs for comprehensive audio connectivity.
- Equipped with 4 DB-25F connectors.
- User-friendly DIP switches for channel range selection.
- Supports 256 channels at 48k sampling rate or 128 channels at 96k sampling rate.
- Clear and informative front panel LED indicators.
- Compact design with a single rack space chassis.
Specifications
| Specification | Details |
|---|---|
| Analog Outputs | 4 DB-25F Connectors |
| Maximum Output Level | +19dBu |
| Frequency Response | 20Hz – 20kHz (+0.5dB/-1dB) |
| THD | < 0.01% 20Hz to 20kHz, +10dBu output |
| Dynamic Range | 108dB typical, 22Hz – 22kHz unweighted |
| Crosstalk | < -75dB |
| D/A Latency | 28/Fs (0.58ms @ 48K, 0.29ms @ 96K) |
| Connectors | 2 x RJ45 Ethernet |
| Max Cable Length | 100m/300ft on Category 5e cable |
| Max # of Nodes | 60 |
| Latency per Node | 4/Fs (0.08ms @ 48K, 0.04ms @ 96K) |
| Required AC Mains (+/- 10%) | 100Vrms – 240Vrms, 50/60Hz |
| BTU | 170 BTU/hour |
| Dimensions (H x W x D) | 1.75″ (45 mm) x 19″ (483 mm) x 7.75″ (197 mm) |
| Weight | 5.13 lbs (2.33 kgs) |
| Brand | |
|---|---|
| EAN |
