Neumann KH 750 DSP-Controlled Compact Subwoofer

Name: Neumann KH 750 DSP-Controlled Compact Subwoofer
Brand: Neumann
SKU: KH 750 DSP D G
Availability: InStock

AED 6220

The KH 750 DSP is a compact subwoofer perfect for small rooms and studio monitors, featuring a flexible Bass Manager, analog and digital inputs, four routing modes, and adjustable acoustical controls. It includes a 10” long-throw driver with ELFF™ technology and a robust grille, all housed in an ultra-compact, closed cabinet for optimal transient response.

In stock

Estimated Delivery : Up to 3 business days
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

Neumann KH 750 DSP Active Subwoofer

The Neumann KH 750 DSP is a compact active subwoofer that delivers high precision and flexibility for smaller rooms and studio monitors. Featuring an innovative Bass Manager, this subwoofer accommodates a range of configurations with both analog and digital inputs. Control and customization are facilitated through the Neumann.Control iPad® app, making it an excellent choice for music, broadcast, or post-production studios.

Features

Compact design for smaller rooms and studio monitors
Advanced Bass Manager with analog and digital inputs
Low-frequency response extended by 10” long-throw driver
Balanced XLR input/output and 192 kHz / 24-bit digital input
Bass control via Neumann.Control iPad® app

Specifications

Category	Specifications
Monitor Type	Active Subwoofer
Enclosure	Sealed, Shielded
Power Rating	256 W
Drivers	1 x 10″ / 254 mm Woofer
Frequency Range	18 Hz to 300 Hz
Frequency Response	18 Hz to 800 Hz ± 6 dB
Maximum SPL	105 dB
Dynamic Range	119 dBA
THD+N	< -100 dB (Analog) < 90 dB (Digital)
Maximum Input Level	+24 dBu
Input Sensitivity/Gain	+2 dB to -12 dB
Self-Generated Noise	Less Than 20 dBA (at 3″/10 cm)
Phase Adjustment	Phase Inversion 0 / 180°
Protections	Limiter, Peak Limiter, Thermal Limiting
CMRR	56 dB
EQ	1 x LF Shelf dB 1 x HF Shelf dB
Filters	1 x Low-Pass
Crossover Frequency	80 Hz
Crossover Type	Active

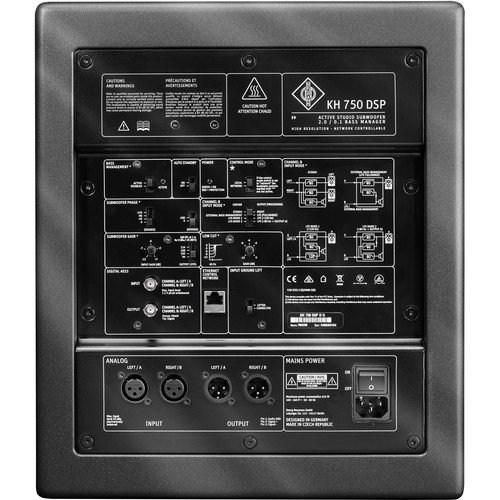

Audio I/O	2 x XLR Balanced Female Analog Input 2 x XLR Balanced Male Analog Output 1 x BNC AES/EBU Female Digital Input 1 x BNC AES/EBU Female Digital Output
USB & Network I/O	1 x RJ45 (Controller)
AC Input Power	100 to 240 VAC, 50/60 Hz
Power Consumption	410 W (Maximum)
Operating Temperature	50 to 104°F / 10 to 40°C
Operating Humidity	90%</
Storage Temperature	-13 to 158°F / -25 to 70°C
Enclosure Material	Aluminum, Wood
Dimensions (W x H x D)	13 x 15.1 x 15.1″ / 330 x 383 x 383 mm
Weight	43.0 lb / 19.5 kg
Package Weight	47.82 lb
Box Dimensions (LxWxH)	20.1 x 19.3 x 15.5″
