Name: Neumann KH 80 DSP Active Studio Monitor 4" 2-Way (Gray, Single)
Brand: Neumann
SKU: KH 80 DSP A G
Availability: InStock

Neumann KH 80 DSP Active Studio Monitor 4″ 2-Way (Gray, Single)

AED 1941

The gray Neumann KH 80 DSP is a 2-way active studio monitor designed for near-field monitoring and multichannel setups in various environments. It features dual amplifiers (120W and 70W) for its 4″ woofer and 1″ tweeter, a DSP engine, and an MMD waveguide. Connectivity includes an analog input and IP network access for control via the Neumann.Control app on multiple devices. This monitor ensures precise sound in diverse acoustic conditions and locations.

In stock

Estimated Delivery : Up to 3 business days
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

Neumann KH 80 DSP – 2-Way Active Studio Monitor

The Neumann KH 80 DSP is an advanced 2-way active studio monitor, specifically designed for near-field monitoring and multichannel setups in various environments, including music studios, broadcast centers, home studios, and even desktop audio applications. With its impressive dual amplifier system (120W and 70W), on-board DSP engine, and a mathematically modeled dispersion waveguide, the KH 80 ensures precise and high-quality sound reproduction suitable for various acoustic conditions.

Key Features

Utilizes two amplifiers to power a 4″ woofer (120W) and a 1″ tweeter (70W).
On-board DSP engine controllable via Neumann.Control app on Windows/Mac and iOS/Android.
Elliptical Mathematically Modeled Dispersion (MMD) waveguide for smooth off-axis response.
In-house simulated 1″ tweeter with low-distortion high frequency reproduction.
Protected by robust metal grilles and large high-capacity flow-optimized bass reflex ports.
Network connector using standard IP protocol for easy integration.
Compact polycarbonate composite cabinet designed for durability.

Specifications

Category	Specification
Monitor Type	Active 2-Way
Enclosure	Bass-Reflex, Shielded
Drivers	LF Driver: 4″ / 101.6 mm Composite Cone HF Driver: 1″ / 25.4 mm Tweeter
Amplification	LF Amplifier: 90 W / 120 W Peak HF Amplifier: 50 W / 70 W Peak
Frequency Range	53 Hz to 21 kHz ± 6 dB 57 Hz to 21 kHz ± 3 dB
Maximum Sound Pressure Level (SPL)	108.8 dB
Dynamic Range	114 dBA
Maximum Input Level	+24 dBu (Balanced)
Analog Input Sensitivity/Gain	0 dB to -15 dB (Incrementally Variable)
Protections and Limiting	Excursion Limiter, Peak Limiter, Soft Limiter, Thermal Limiting

Power Specifications

Category	Specification
AC Input Power	100 to 240 VAC, 50/60 Hz
Power Consumption	180 W (Maximum)
Operating Temperature	50 to 104°F / 10 to 40°C
Storage Temperature	-13 to 158°F / -25 to 70°C

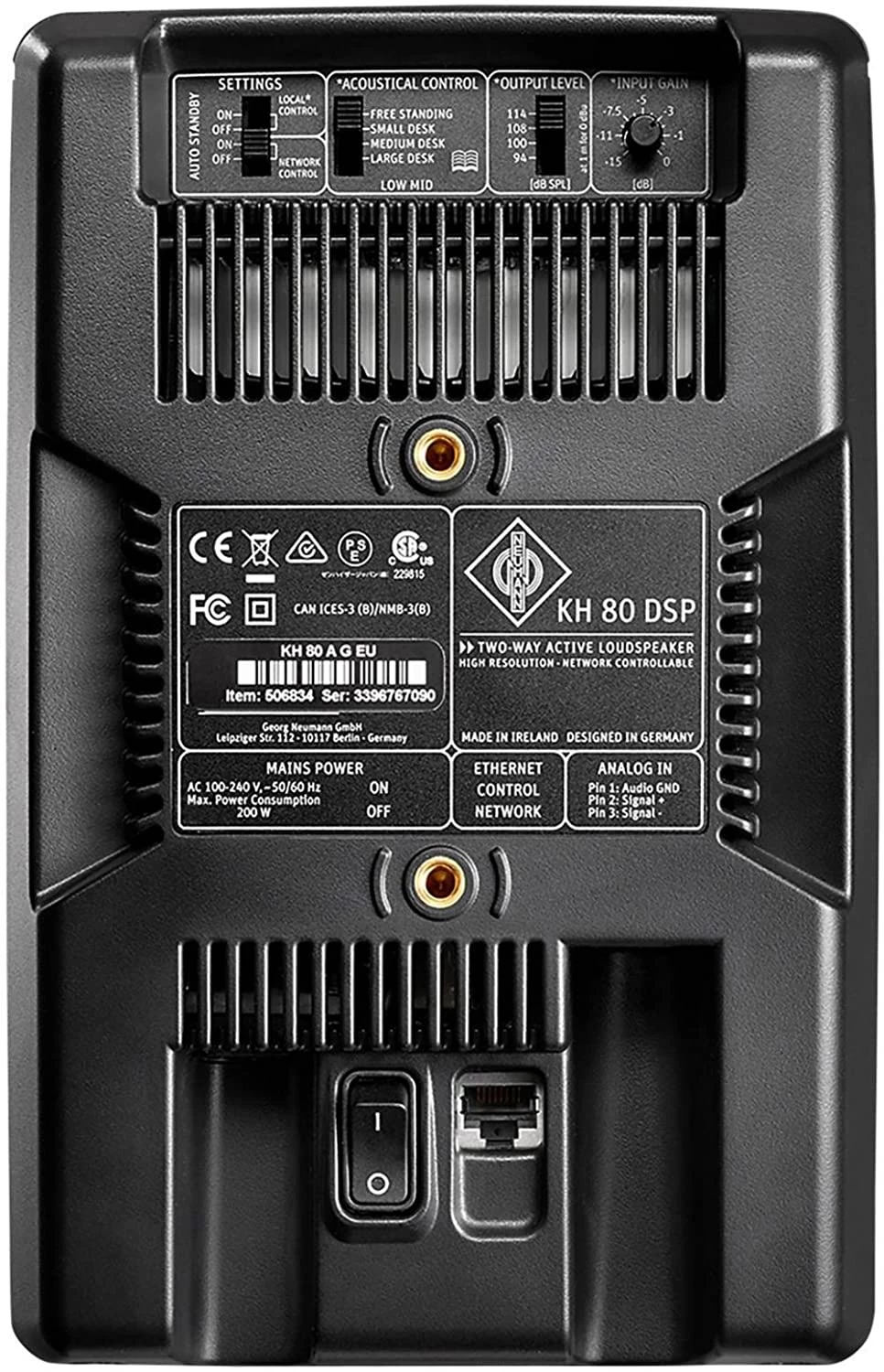

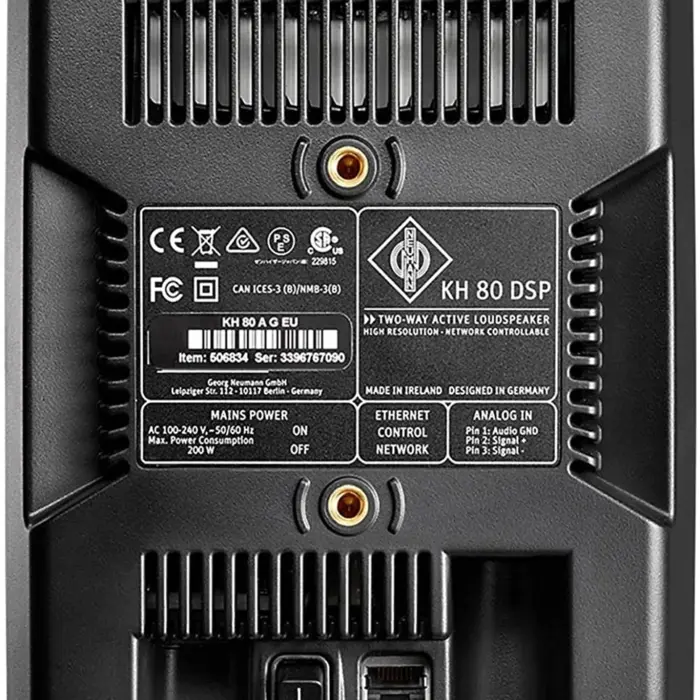

Connectivity

Category	Specification
Audio I/O	1 x Combo XLR-1/4″ Balanced Female Analog Input
USB & Network I/O	1 x RJ45 (Network)

General

Category	Specification
Mounting Points	2 x M6 (Rear Panel)
Dimensions (W x H x D)	6.1 x 9.2 x 7.6″ / 154 x 233 x 194 mm
Weight	9.0 lb / 4.1 kg
Package Weight	9.6 lb
Box Dimensions (LxWxH)	14 x 11 x 9.7″
