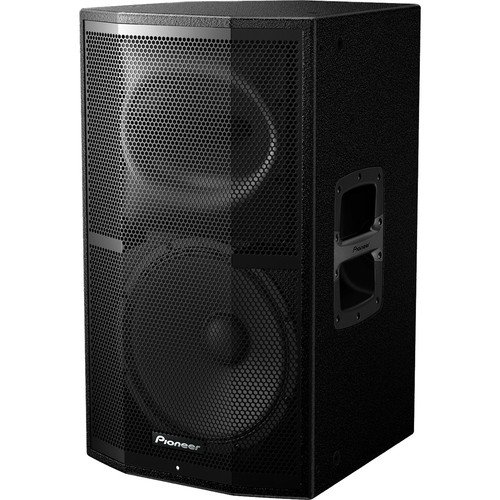

Pioneer DJ XPRS 12 Powered PA Speaker

Pioneer XPRS 12 Active Speaker

The Pioneer XPRS 12 is a versatile 12″ 2-way active speaker designed for an array of audio applications, including mobile DJs, bands, clubs, and more. Constructed from 15mm birch plywood, it offers a robust build with superior sound quality.

Key Features

• 12″ ferrite low-frequency cone woofer
• 1.75″ titanium-diaphragm compression driver
• 2400W peak output provided by high-efficiency Powersoft amplifier
• AFAST technology for enhanced low-frequency response
• Versatile mounting options including floor monitor usage
• Four EQ modes to suit various audio requirements

Connections and Controls

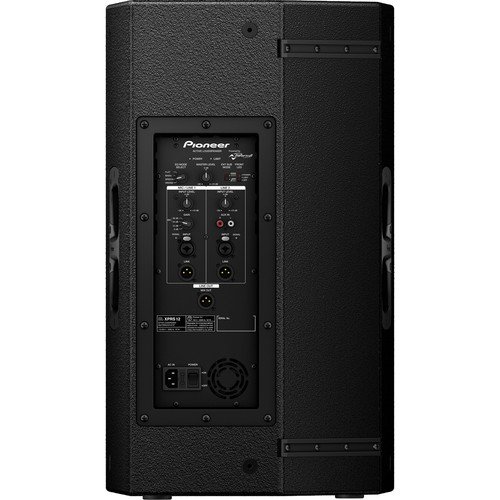

The rear panel features flexible connectivity with two input channels. Channel 1 supports a combo XLR/TRS connector for microphone and line levels, while Channel 2 supports combo XLR/TRS and stereo RCA inputs. Both channels feature independent gain controls and link outputs, as well as an XLR line out for mixed signals.

Advanced Protection

To ensure longevity and reliability, the XPRS 12 includes several protection features such as thermal limiting, overcurrent reduction, and speaker protection against DC offset and high-frequency bursts. Additionally, an AC mains over-voltage protection safeguards against power surges.

Specifications

Specification	Details
Driver Configuration	12″ LF, 1.75″ HF
Amplifier Peak Power	2400W
Frequency Response	50 Hz – 20 kHz
Max SPL	135 dB
Construction	Birch Plywood
Input Connectors	XLR/TRS, RCA
Mounting Options	Rotatable Horn, Pole Mount (0/7°)
Dimensions	399 x 647 x 411 mm
Weight	24.6 kg
