QSC Large Black Aluminum Array Frame for Wireline 10 (WL2102)

Name: QSC Large Black Aluminum Array Frame for Wireline 10 (WL2102)
Brand: QSC
SKU: AF2102-LA-BK
Availability: InStock

AED 13311.09

The QSC AF-2102-LA Large Aluminum Black Array Frame is designed for rigging the Wideline-10 line array loudspeaker, supporting up to 1423 pounds with a 7:1 strength rating or 8 enclosures. It features a three-point suspension system with front, left/right articulated joints, and a single rear link bar allowing for 2-degree increments of articulation, or 1-degree increments from 3 degrees using the second link bar location. The angular adjustments range from 0 to 10 degrees. The frame includes all necessary pieces and locking pins with lanyards, eliminating the need for additional ancillary items.

In stock

Estimated Delivery : Up to 3 business days
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

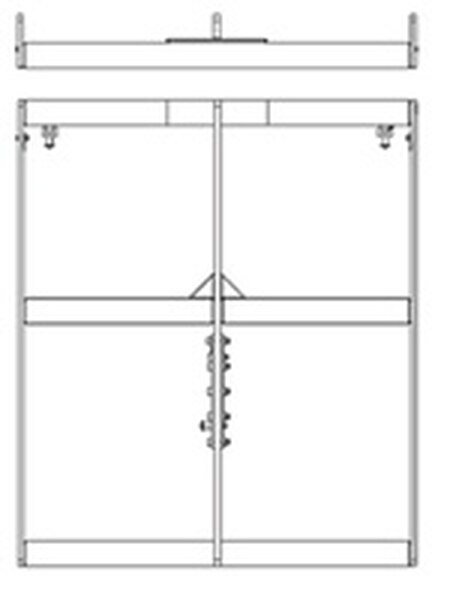

QSC AF-2102-LA Large Aluminum Black Array Frame

The QSC AF-2102-LA Large Aluminum Black Array Frame is designed for safely rigging the WideLine-10 line array loudspeaker. Crafted from heavy-duty aluminum, this fly grid is robust and reliable, capable of supporting up to 1423 pounds (646.8 kg) with a 7:1 strength rating. It can accommodate up to 8 stacked enclosures in a secure manner.

Featuring a three-point suspension system, WideLine-10 enclosures are equipped with front, left/right, and captive articulated joints, along with a single rear link bar. This system allows articulation in 2° increments using the first location on the link bar. For finer adjustments, the second location permits 1° increments, starting from 3°. Overall, the angular increments available are 0°, 2°, 3°, 4°, 5°, 6°, 7°, 8°, 9°, and 10°.

All components, including locking pins, remain with the enclosures, ensuring no additional items are necessary for suspension. Ball-lock pins come with lanyards to prevent loss, adding to the convenience and reliability of the system.

Key Specifications

Specification	Details
Material	Heavy-duty Aluminum
Color	Black
Maximum Load Capacity	1423 pounds (646.8 kg)
Strength Rating	7:1
Maximum Stacked Enclosures	8
Suspension System	Three-point
Angular Increments	0° to 10°
Locking Pins	Equipped with Lanyards
