Tannoy QFLEX 32 Digitally Steerable Column Array Loudspeaker

Name: Tannoy QFLEX 32 Digitally Steerable Column Array Loudspeaker
Brand: Tannoy
SKU: QFLEX 32
Availability: InStock

AED 39275

The QFLEX 32 is a powered, digitally steerable multi-channel column array loudspeaker designed for challenging acoustic environments such as houses of worship, transportation hubs, convention centres, conference facilities, shopping malls, performing arts centres, and museums. It features the VNET loudspeaker networking platform with software and hardware DSP components, providing high speech intelligibility, impactful music reinforcement, and comprehensive system diagnostics and monitoring.

In stock

Estimated Delivery : Up to 3 business days
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

QFLEX 32

The QFLEX 32 is a powered, digitally steerable multi-channel, column array loudspeaker designed for acoustically challenging environments. Its advanced features make it ideal for places like houses of worship, transportation hubs, and performance centers. The heart of the system is the proprietary VNET loudspeaker networking platform, which delivers high speech intelligibility, powerful music reinforcement, and comprehensive system diagnostics.

Features

Digitally steerable column array speaker system with high-intelligibility speech and music reinforcement
±70° steering control with 32 channels of integrated DSP and amplification
BeamEngine GUI for creating asymmetric patterns and achieving even SPL coverage
Suited for challenging acoustic environments with extended frequency range steering control

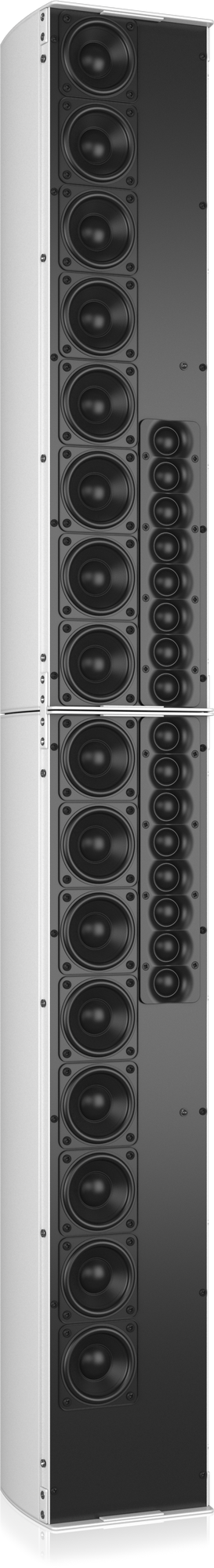

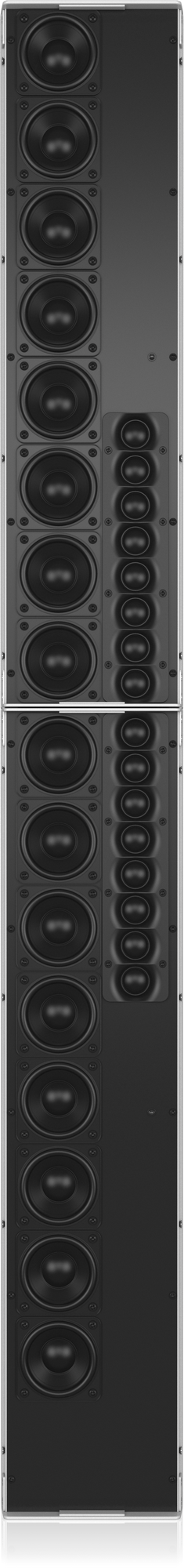

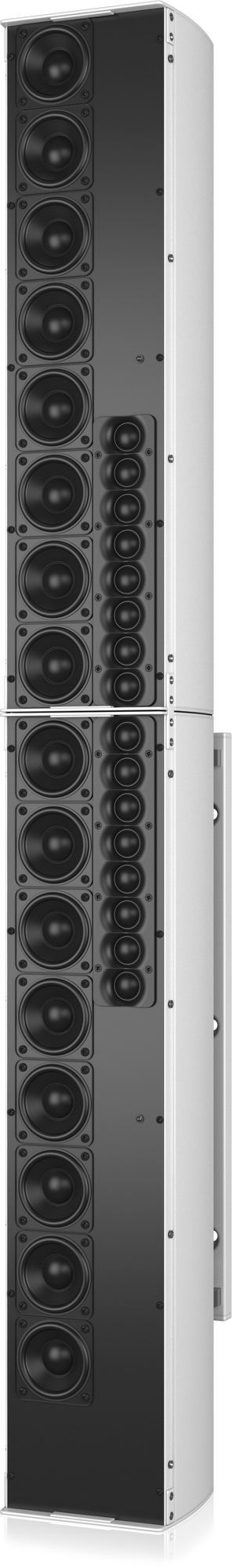

Includes 16 low-frequency and 16 high-frequency drivers with 100 Watt amplifiers
Effective for coverage distances up to 50m (164′)
High-density transducers prevent aliasing artifacts
Compatible with other Tannoy VNET enabled products
Options available for constant voltage systems, Audinate Dante digital audio networks, and AES3 interfaces
AES3 input and link connections with a sample rate conversion up to 96 kHz
PA/VA compliant for public address and voice alarm systems
Architecturally styled aluminium enclosure with a semi-matt white finish
Corrosion-resistant aluminium grille
Custom brackets included for swift and accurate installation

Specifications

Specification	Details
LF Drivers	16 x 3″
HF Drivers	16 x 1″
Amp Channels	12 x 100 W (RMS) @ 4 Ohms
Vertical Dispersion	Variable between 10° – 100° (asymmetric & multiple beams possible)
Frequency Range	130 Hz – 20 kHz
Horizontal Dispersion	120°
Aiming Angle Limit	± 70°
LF Beam Control Limit	400 Hz
Max SPL @ 100 ft (30 m)	100 dB
Column Height	1387 mm (54.6″)
Column Width	171.5 mm (6.7″)
Column Depth	150 mm (5.9″)
Typical Application Distance	50 m (165 ft.)
Sample Rate	96 kHz
Audio Inputs	Analogue & AES/EBU
Net Weight	23.5 kg (51.8 lbs)
