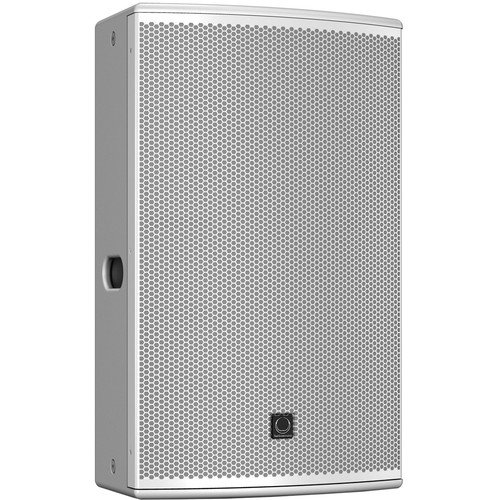

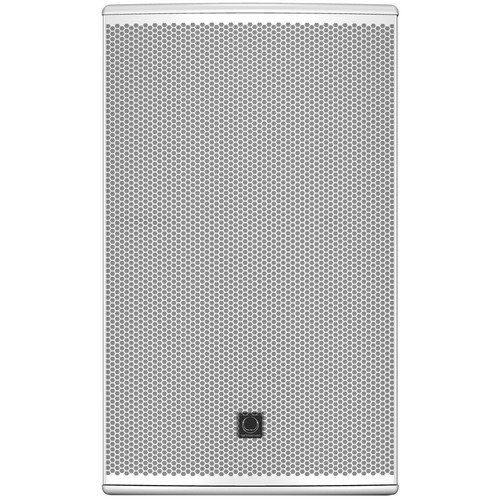

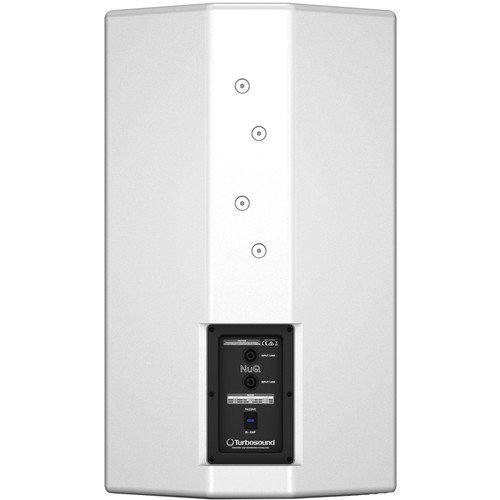

NuQ152-WH 2-Way 15″ Full-Range Loudspeaker
The NuQ152-WH is a versatile and powerful full-range loudspeaker, perfect for portable PA applications. It delivers exceptional sound quality with its advanced components and durable build, suitable for a variety of audio setups including FOH, side-fill, and monitor applications.
Product Highlights
- 500W continuous power and up to 2000W peak power handling
- 15″ low-frequency driver with a high-efficiency low-mass voice coil
- 1″ neodymium high-frequency compression driver with aluminum dome
- Reflex-loaded enclosure crafted from 5/8″ birch plywood
- Rugged powder-coated perforated-steel grille for added protection
- 70 x 70° dispersion pattern for broad sound coverage
- Multiple rigging points for flexible mounting options
- Integrated handles and 35mm pole mount for easy transport and setup
Key Specifications
Specification |
Details |
Frequency Response |
50 Hz to 18 kHz ±3 dB, 45 Hz to 20 kHz -10 dB |
Nominal Dispersion |
70 x 70° (H x V) |
Directivity Factor |
9.4 |
Directivity Index |
9.7 |
Power Handling |
Passive: 500W continuous, 2000W peak; Bi-amp LF: 500W continuous, 2000W peak; HF: 40W continuous, 160W peak |
Sensitivity |
96 dB (1 W @ 1 m) |
Maximum SPL |
Passive: 124 dB continuous, 130 dB peak; Bi-amp LF: 124 dB continuous, 130 dB peak; HF: 122 dB continuous, 128 dB peak |
Impedance |
Passive: 8 ohms; Bi-amp LF: 8 ohms; HF: 8 ohms |
Crossover Type |
Passive / bi-amp, switchable |
Components |
1 x 15″ LF driver, 1 x 1″ HF compression driver |
Enclosure Details
Specification |
Details |

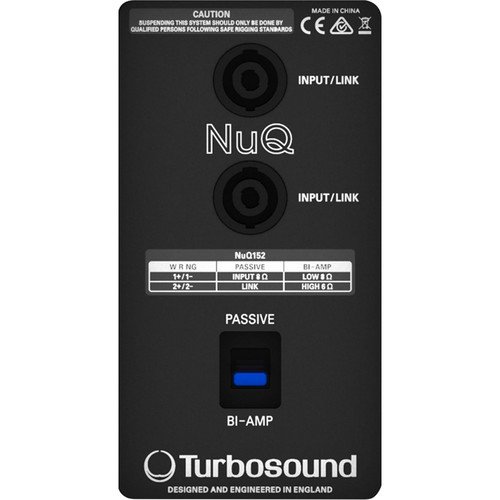

Connectors |
2 x Neutrik speakON NL4 |
Wiring |
Passive Pins 1+ / 1- input, pins 2+ / 2- link; Bi-Amp Pins 1+ / 1- LF, pins 2+ / 2- HF |
Construction |
5/8″ (15mm) birch plywood |
Grille |
Powder-coated perforated steel |
Dimensions |
28 x 16.9 x 15.2″ (71.2 x 43.0 x 38.5 cm) |
Weight |
53.7 lb (24.4 kg) |
Packaging Information
Specification |
Details |
Package Weight |
66.2 lb |
