Yamaha CL5 72-Channel Digital Mixing Console
The Yamaha CL5 digital mixer is engineered for superior performance in live sound and broadcast settings, supporting up to 72 mono and 8 stereo mixable channels when paired with Rio series stage boxes. It features 32 channel faders, two master faders, and includes Virtual Circuitry Modeling by Rupert Neve Designs for accurate emulations of Portico 5033 EQ and Portico 5043 compressors. Integrated Dan Dugan automatic mixing enhances microphone management and feedback control, ensuring optimal audio quality.
- Estimated Delivery : Up to 3 business days
- Free Shipping & Returns : On all orders over AED 1000

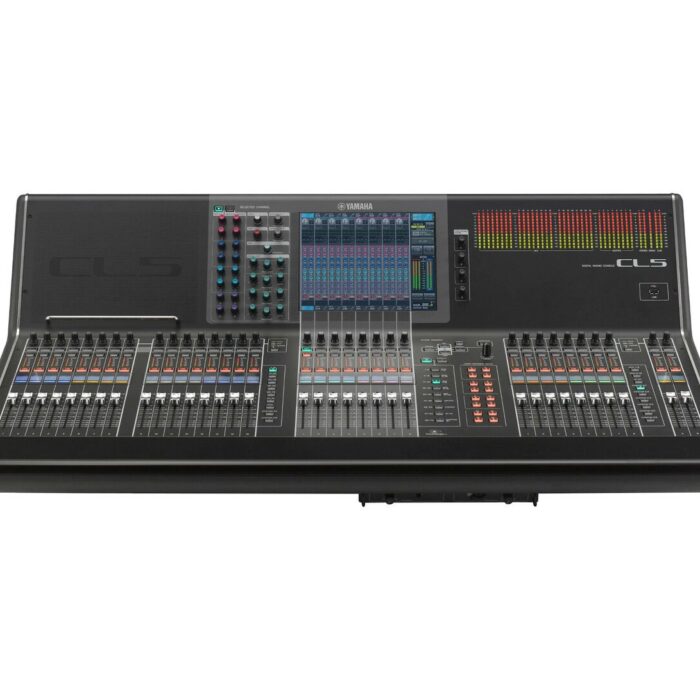

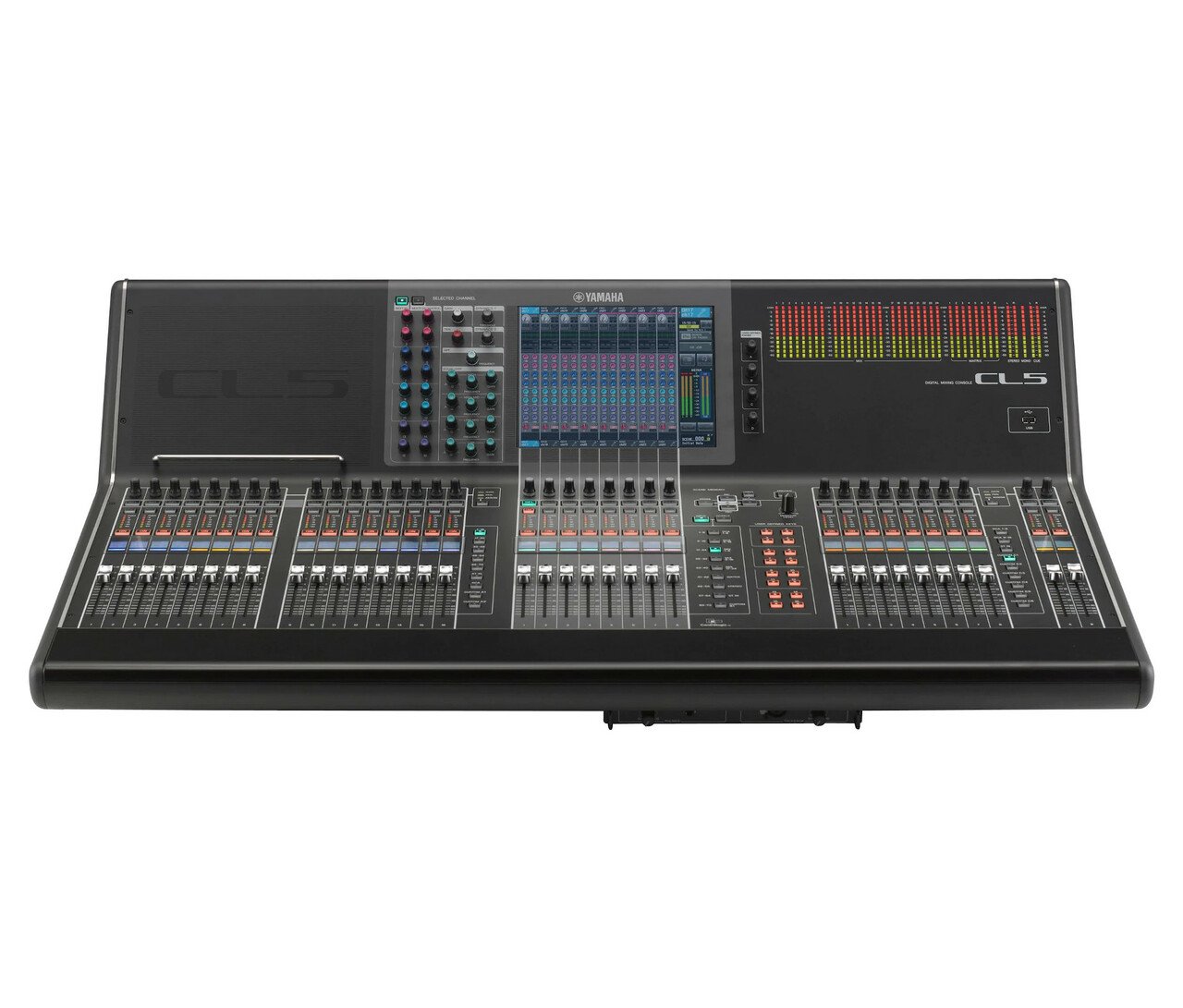

Yamaha CL5 Digital Mixer
Designed to excel in live sound and broadcast environments, the Yamaha CL5 digital mixer offers unparalleled audio quality and sophisticated show control. When paired with Rio series stage boxes (sold separately), this mixer supports up to 72 mono and 8 stereo channels, all controllable through 32 channel faders and two master faders. Integrating the esteemed Virtual Circuitry Modeling by Rupert Neve Designs, operators gain access to the Neve Portico 5033 EQ and Portico 5043 compressor/limiter, along with other classic hardware emulations. Moreover, the built-in Dan Dugan automatic mixing system simplifies microphone optimization and feedback management, making world-class sound design accessible to any user.
Key Features
- 32-fader digital mixing console
- 72 mono and 8 stereo mixable channels
- Support for up to 8 Rio series stage boxes (sold separately)
- Touchscreen display with Centralogic user interface
- Built-in Dante interface with 3 MY-card slots for expansion
- Rupert Neve Designs’ Portico 5033 EQ and 5043 compressor/limiter
- Dan Dugan automatic mixing for improved microphone management
- Licenses for Nuendo Live and Dante Virtual Soundcard included
Specifications
| Specification | Details |
|---|---|
| Type | Digital |
| Channels | 32 + 2 master faders, 72 mono and 8 stereo mixable |
| Mic Preamps | 8 x XLR |
| Phantom Power | 8 |
| Line Outputs | 8 x XLR |
| Digital Inputs | 2 x RJ-45 (Dante) |
| Digital Outputs | 2 x RJ-45 (Dante), 1 x XLR (AES/EBU) |
| Buses | 16 send Mix bus, 8 send Matrix bus |
| Inserts | Internal |
| Talkback | 1 x XLR |
| MIDI I/O | In/Out |
| Data I/O | 1 x D-Sub GPI (15-pin female), 1 x Ethernet |
| Headphones | 1 x 1/4″ |
| USB | 1 x USB Type A |
| Computer Connectivity | Ethernet |
| I/O Expansion Slots | 3 x Card slots (for DSP or mini-YGDAI cards) |
| Word Clock | In/Out |
| Faders | 26 x 100mm |
| EQ Bands | 4-band parametric, 31-band Graphic, 15-band Flex |
| Effects | Reverbs, Delays, Modulation, Premium compressor modeling |
| DAW Control | Yes (via Dante) |
| Dimensions (H x D x W) | 11.75″ x 26.25″ x 41.5″ |
| Weight | 79.4 lbs |
| Manufacturer Part Number | CL5 |
| Brand | |
|---|---|
| EAN |
