Yamaha CSDR7 Digital Mixing Console

Name: Yamaha CSDR7 Digital Mixing Console
Brand: Yamaha
SKU: CSD-R7
Availability: InStock

AED 390140

The CSD-R7 digital mixing console is the heart of the RIVAGE PM7 system, featuring 96 kHz processing, 120 monaural inputs, and a flexible array of mixing buses including 60 MIX, 24 MATRIX, and 2 STEREO. It includes three 12-fader bays for adaptable setup and dual built-in power supply units for improved reliability.

In stock

Estimated Delivery : Up to 3 business days
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

Product Overview: CSD-R7 Digital Mixing Console

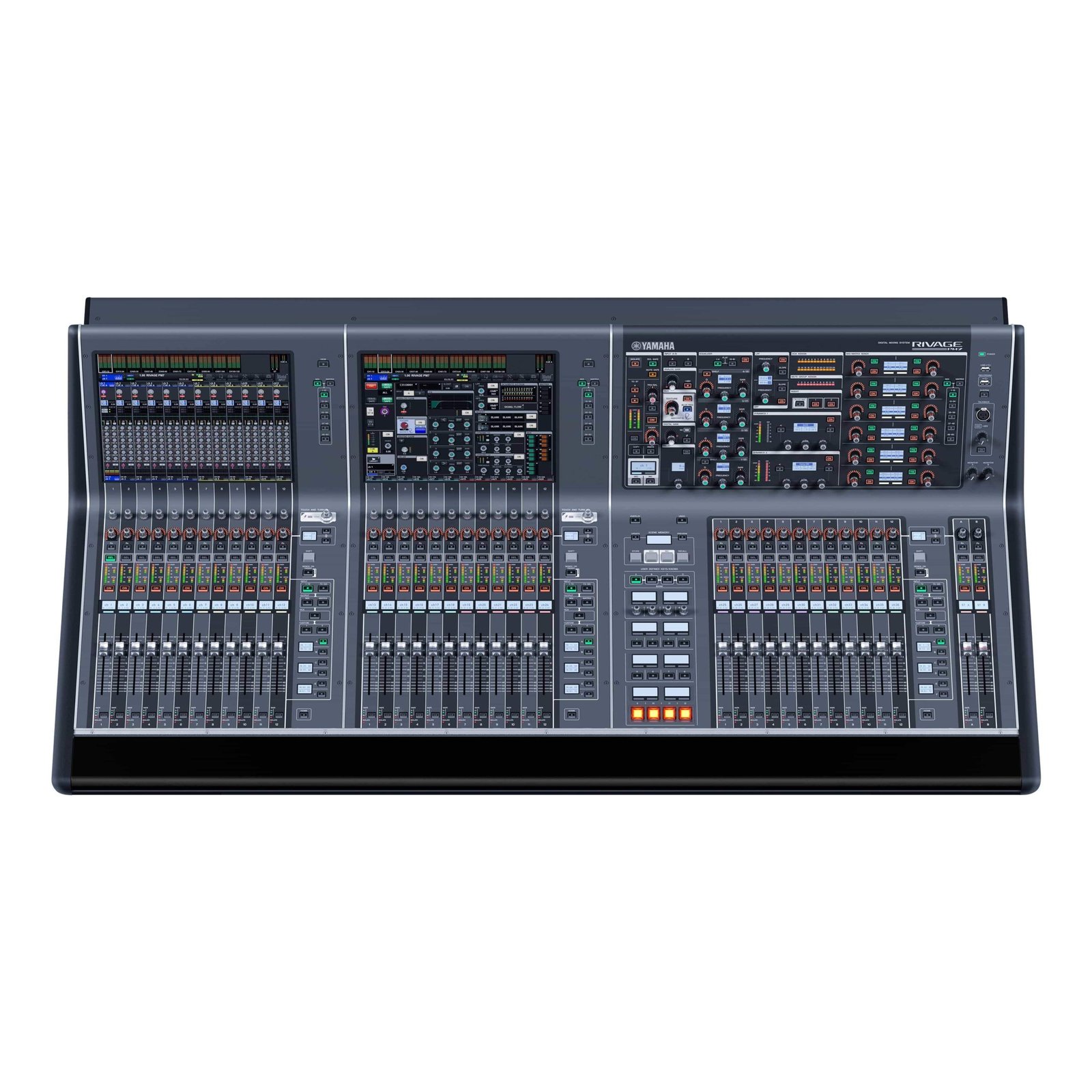

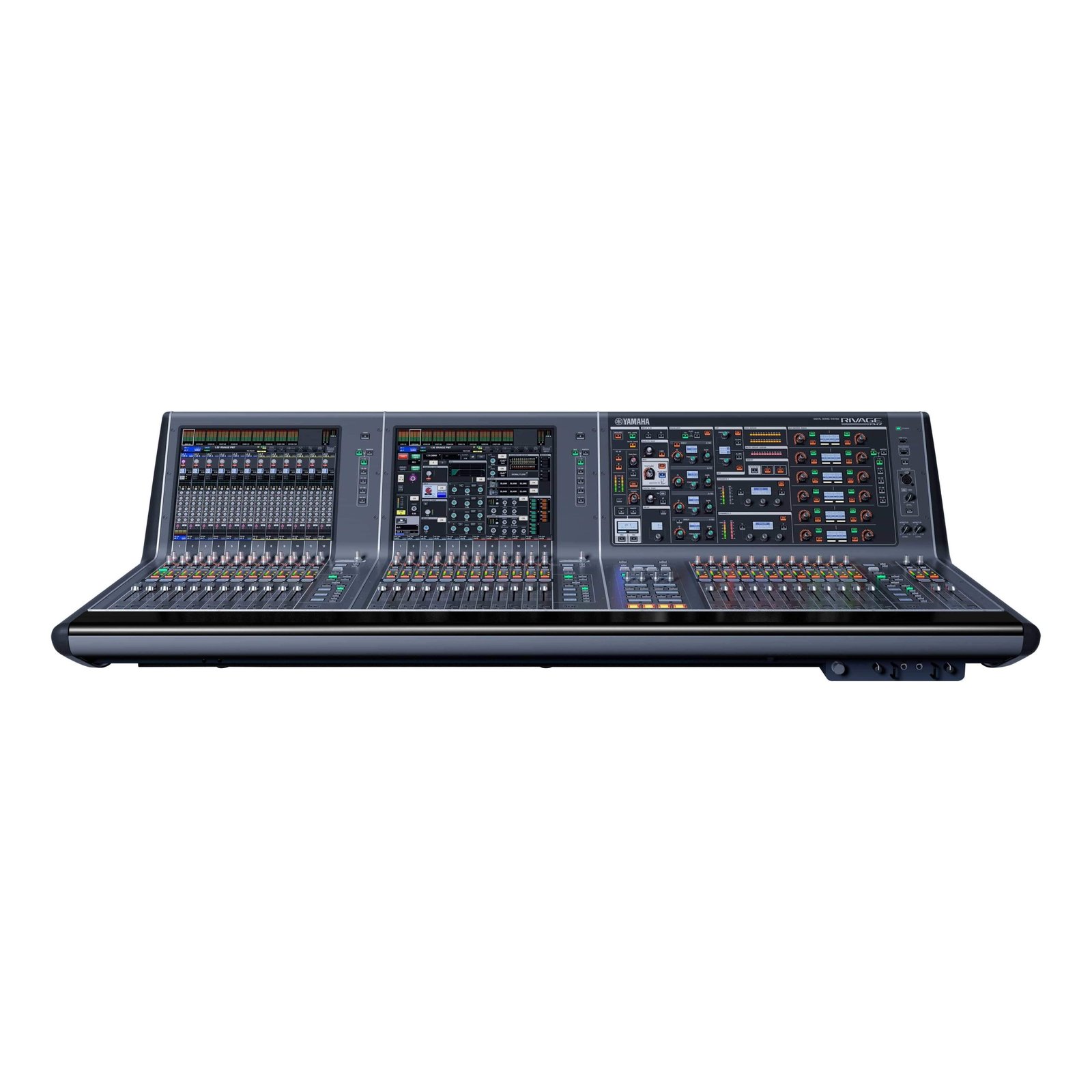

The CSD-R7 digital mixing console is the core component of the RIVAGE PM7 system, offering advanced 96 kHz processing, 120 monaural inputs, and a versatile array of mixing buses including 60 MIX, 24 MATRIX, and 2 STEREO buses. With three 12-fader bays, the console provides flexible setup options, ensuring it meets a wide range of application needs. Dual built-in power supply units enhance the system’s reliability, making it a robust choice for professional audio environments.

This system boasts built-in signal processing for top-tier mixing and effects, requiring additional I/O racks for comprehensive input and output capabilities, along with a dedicated interface card for network connectivity. The compact, portable design mirrors the control layout of the larger RIVAGE PM10 system, ensuring high standards of operation and efficiency.

Features:

Dual 15″ touch panel displays for intuitive operation
38 faders arranged in three 12-fader bays with 2 master faders
Comprehensive channel parameter controls in the Selected Channel section
6 x 2 custom fader banks per bay for personalized setups
48 user-defined keys in 4 banks and 16 user-defined knobs in 4 banks
2 touch-and-turn knobs for quick adjustments
Analog I/O with 8 inputs and 8 outputs
Versatile slot configuration with 3 HY slots and 2 MY slots
Built-in AES/EBU interfaces with 4 inputs and 4 outputs (with SRC)

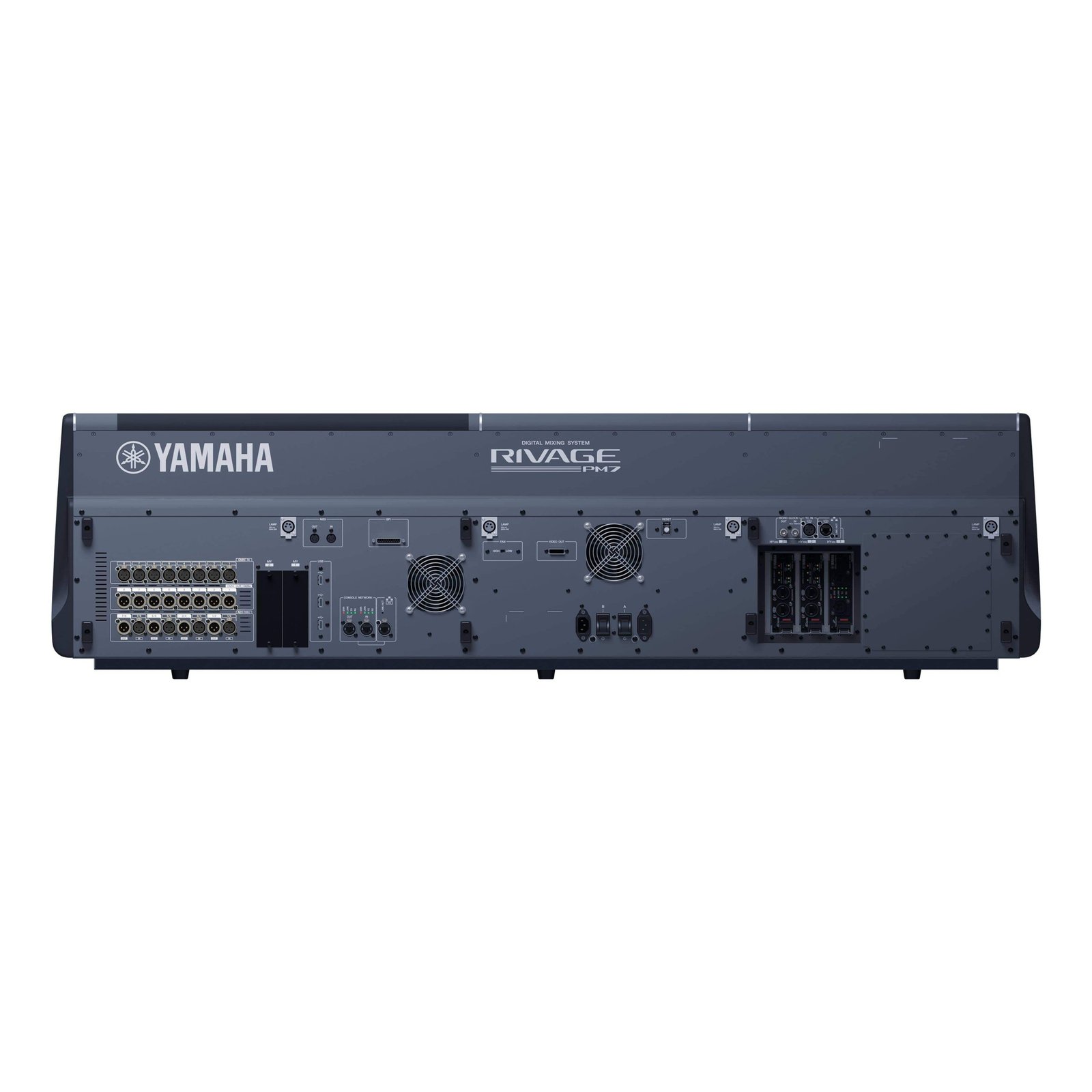

Comprehensive connectivity ports including GPI, Word Clock, MIDI, USB, and Video Out
Dual redundant power supply for uninterrupted operation

Specifications:

Specification	Details
Display	15″ touch panel x 2
Faders	38 (12+12+12+2)
Selected Channel section	Comprehensive channel parameters
Custom Fader banks	6 x 2 on each bay
User Defined keys	12 x 4 banks
User Defined knobs	4 x 4 banks
Touch and Turn knobs	2
Analog I/O	8 in / 8 out
Slot	3 HY slots, 2 MY slots
AES/EBU	4 in / 4 out (with SRC)
Ports	GPI (8 in / 8 out), Word Clock In/Out, MIDI In/Out, 5 USB (1 for 2-track recording), Video Out (DVI-D), TC In
Power supply	Dual redundant power supply built-in
Power consumption	415W
Dimensions (WxHxD)	1,549 x 417 x 848mm (61.0″ x 16.4″ x 33.4″)
Net Weight	94 kg (207 lbs)
