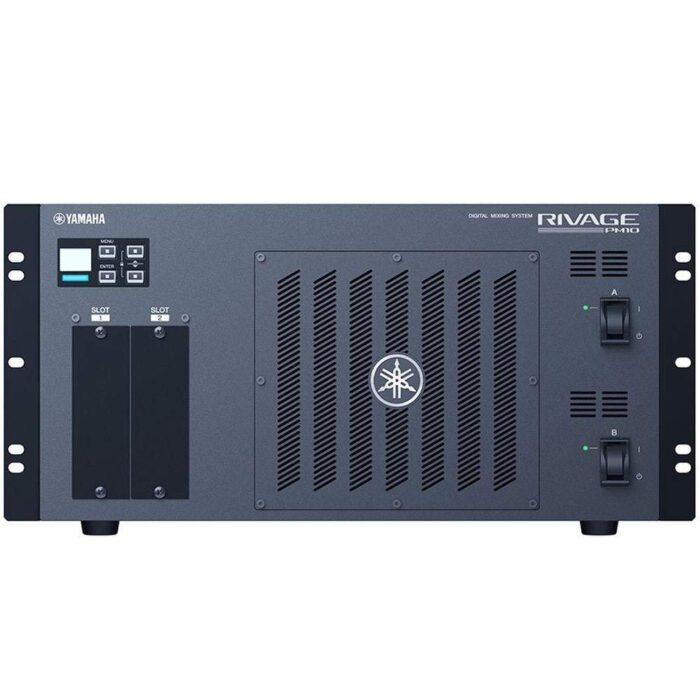

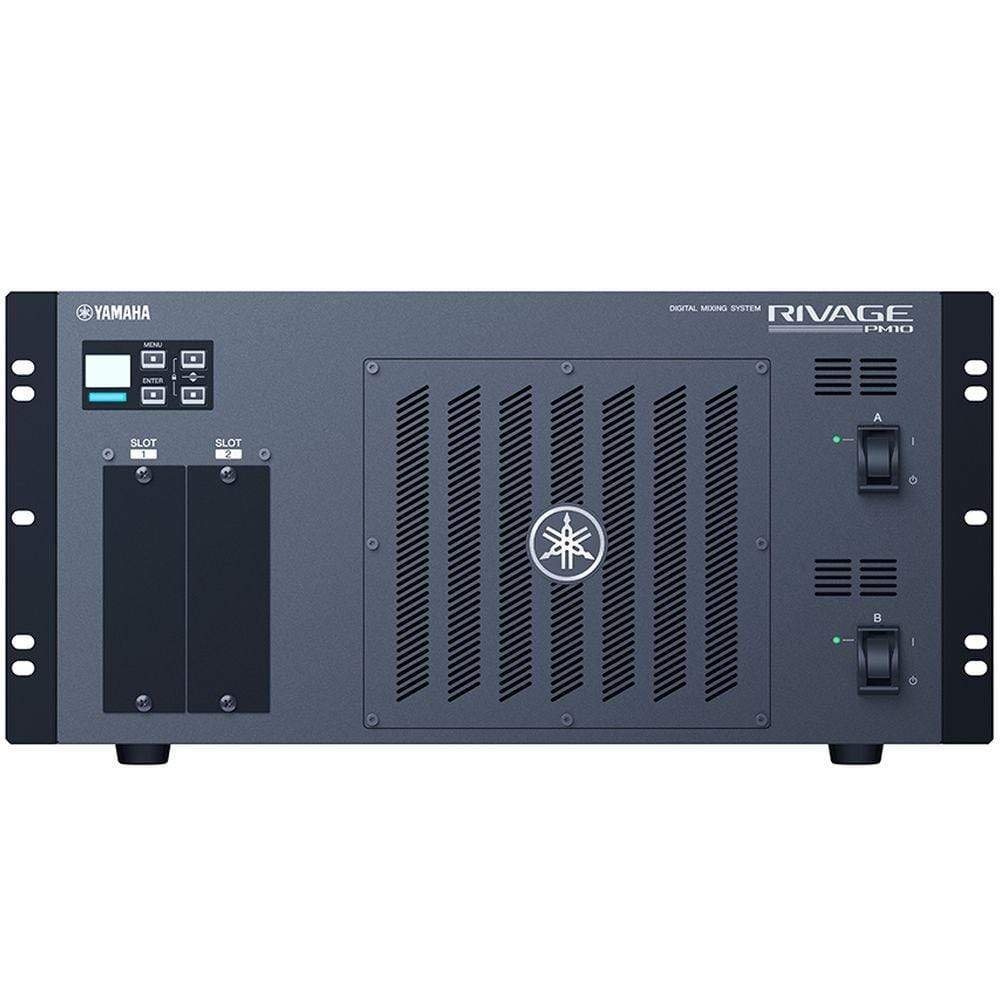

Yamaha DSP-R10 Digital Signal Processor Engine

Name: Yamaha DSP-R10 Digital Signal Processor Engine
Brand: Yamaha
SKU: DSP-R10
Availability: InStock

AED 192570

The RIVAGE PM series offers versatile audio solutions with five consoles, two DSP engines, two I/O rack units, and two network protocols, designed to be combined for various application scales and budget needs.

In stock

Estimated Delivery : Up to 3 business days
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

Yamaha RIVAGE PM Series Digital Mixing System

The Yamaha RIVAGE PM series is a comprehensive system offering exceptional flexibility and advanced features for professional audio mixing applications. The series includes five consoles, two DSP engines, and versatile I/O rack units that can be customized to meet various scale and budget requirements. The user-friendly interface across all units ensures that engineers can effortlessly switch between different RIVAGE PM consoles with minimal learning curve.

Main Features:

Processes digital audio signals for up to 144 input, 72 MIX, 36 MATRIX, and 2 STEREO channels.

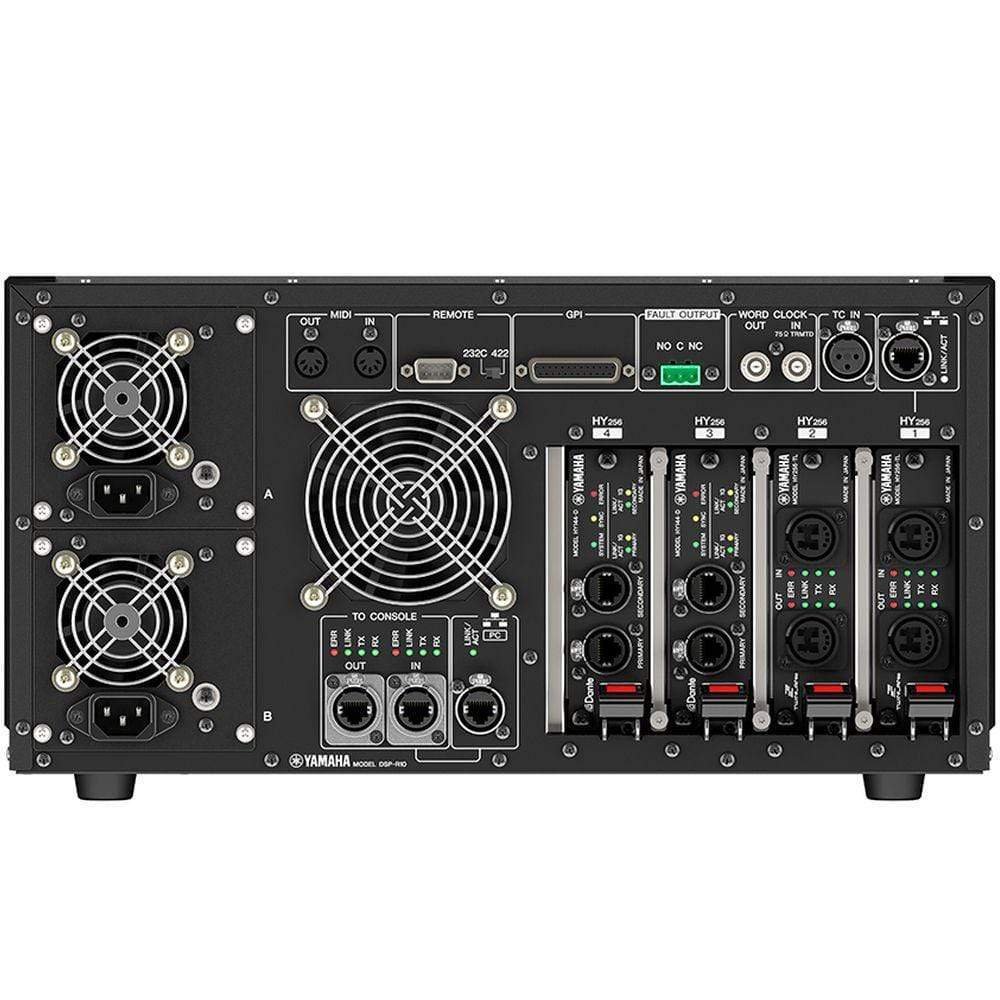

Equipped with four HY card slots, enabling transmission and reception of up to 256 ins/outs of digital audio signals/control signals.
Supports multiple audio formats with the inclusion of two Mini-YGDAI slots.
Built-in dual redundant power supply for reliable performance.

Specifications:

Specification	Details
Input Mixing Channels	144 mono
Mix Buses	72
Matrices	36 (Input to Matrix supported)
Stereo Buses	2
Mono Buses	1
Cue Bus	2
Analog Input	XLR: 8
Analog Output	XLR: 8
Expansion Slots	HY Slots: 4, MY Slots: 2
Digital In	AES/EBU: 4
Digital Out	AES/EBU: 4
GPI	IN (D-Sub): 8, Out (D-Sub): 8
Word Clock I/O	In / Out
MIDI I/O	In / Out
USB	File: 4, 2 Track Rec/Play: 1
External Redundant PSU	Built-in dual power supply
Meter Bridge	On screen
Ethernet	Yes
Talkback In	Yes
Video Out	Yes
TC In	Yes
Fault Output	Yes
Phones	2
AC Inlet	2 (V-Lock Type)
Number of Scenes	1000
Recall Safe	Yes
Focus Recall	Yes
Fade Time	Yes (0s ~ 60s)
Preview	Yes (V2.0 or later)
Selective Load / Save	Yes (V1.5 or later)
Global Paste	Yes (V1.2 or later)
Event List	Yes (V2.0 or later with timecode trigger)
Overlay	Yes (V1.2 or later)
Isolate	Yes
Tactile Control Keys	Yes
Power Consumption	190W
Dimensions (WxHxD)	480 x 232 x 490.8mm (18.9″ x 9.1″ x 19.3″) (5U rack size)
Net Weight	20 kg (44 lbs)
