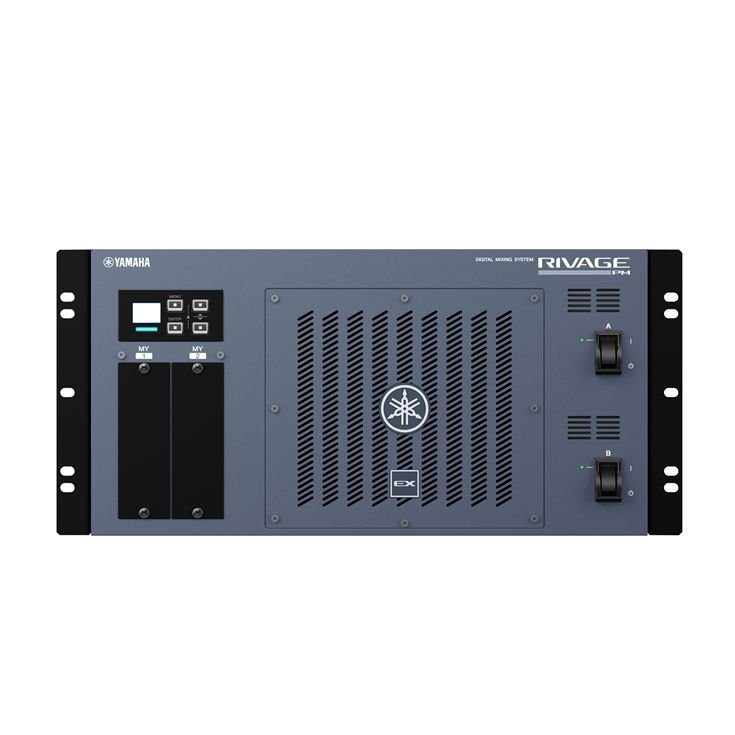

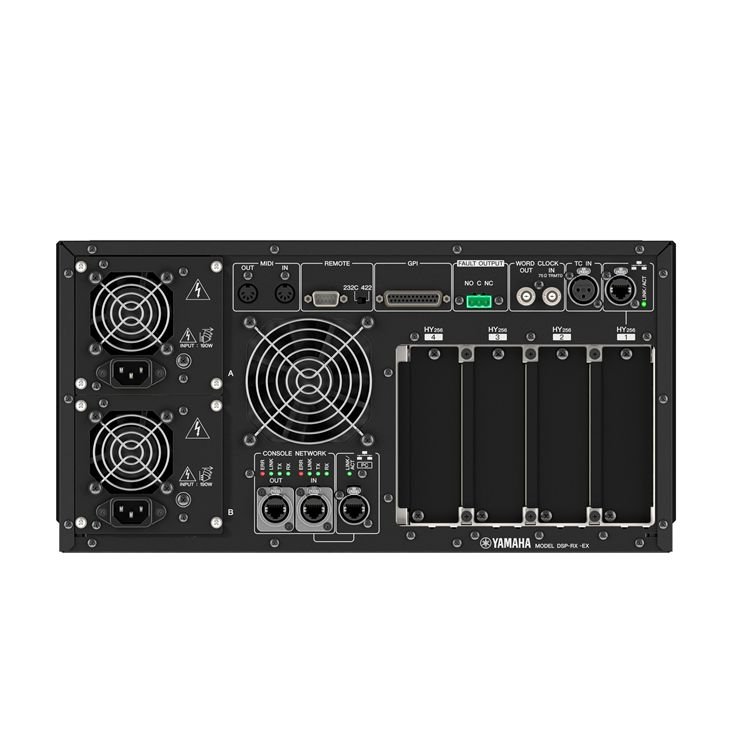

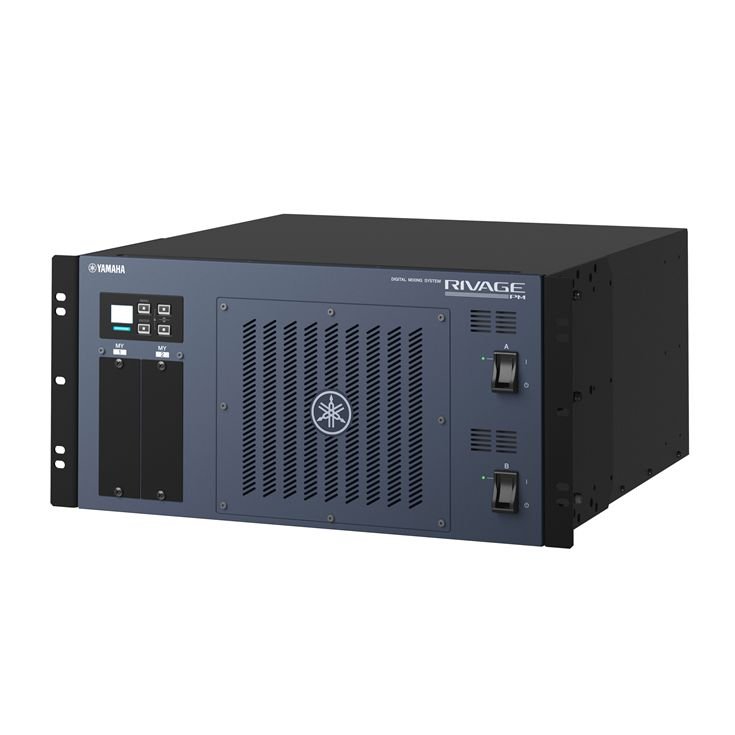

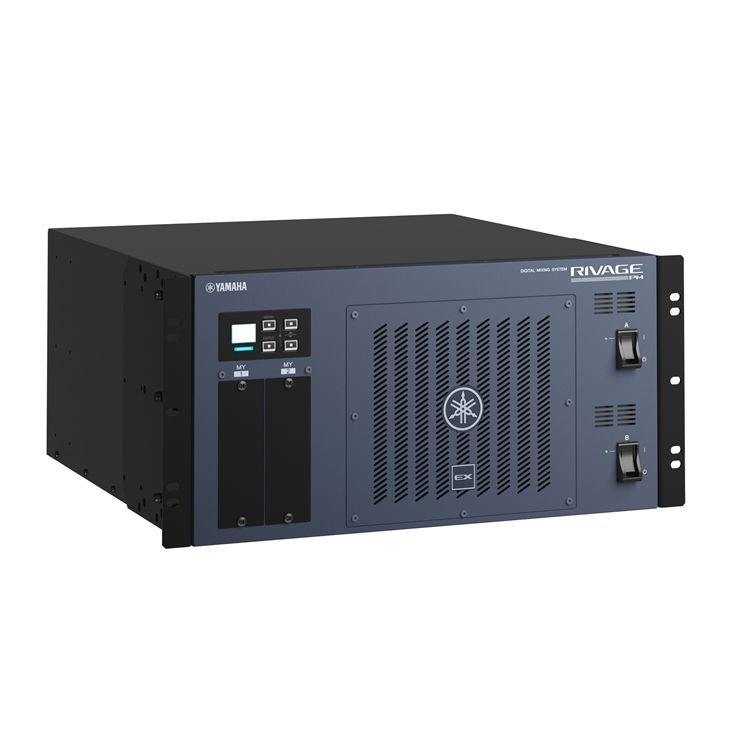

Yamaha DSP-RX-EX 288-Input Digital Signal Processor Engine

Widely recognized for their stellar sound and flexible control, Yamaha’s RIVAGE PM digital mixing systems embody the first-class sound, operability, and reliability that pro-level engineers demand. The DSP-RX-EX is at the heart of the RIVAGE PM series, providing you with ultra-powerful signal processing and superior system control. This high-performance DSP engine accommodates up to 288 inputs, with 72 mix channels, 36 matrix channels, and two stereo channels. You’ll appreciate the DSP-RX-EX’s built-in plug-ins, which include spot-on hardware emulations from Rupert Neve Designs along with Eventide harmonizer and reverb effects. This DSP engine was designed with expansion in mind, boasting four HY slots and two Mini-YGDAI slots. You also get DSP mirroring and dual redundant power supplies for rock-solid reliability. The DSP-RX-EX is a component of Yamaha’s RIVAGE PM system, which also includes a control surface and an I/O rack.

Features:

• 288-input DSP engine for the Yamaha RIVAGE PM digital mixing system
• Provides you with ultra-powerful signal processing and superior system control
• Features 72 mix channels, 36 matrix channels, and 2 stereo channels
• Built-in plug-ins include Rupert Neve Designs hardware emulations and Eventide effects
• 4 HY slots are capable of transmitting/receiving up to 256 ins/outs of digital audio
• 2 Mini-YGDAI slots support a plethora of audio formats
• DSP mirroring and dual redundant power supplies ensure rock-solid reliability

Specification:
