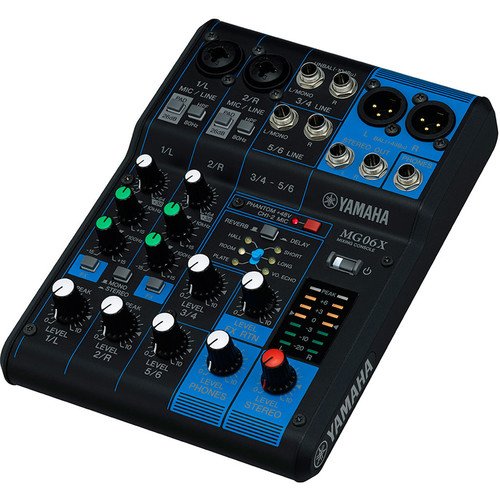

Yamaha MG06X 6-Channel Analog Mixing Console with Mic Preamps and Pad Switch

Yamaha MG06X 6-Input Compact Mixer with Built-In Effects

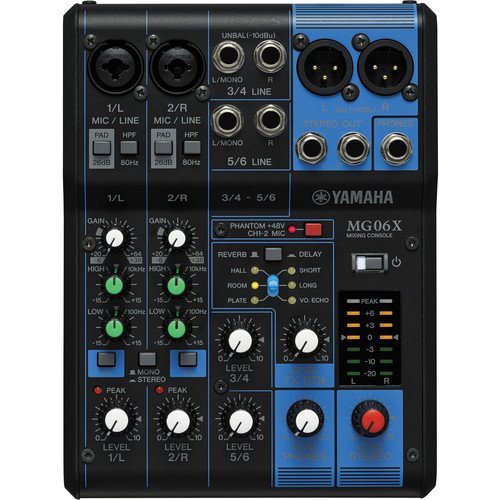

The MG06X from Yamaha is a compact six-input mixer with integrated effects, designed for small performances, lectures, recordings, and similar applications. It features two XLR-1/4″ combo mic/line inputs with D-PRE mic preamps and two 1/4″ stereo line inputs with individual level controls.

Each mic/line input is equipped with a 2-band EQ and a high-pass filter at 80 Hz. The signature D-PRE mic preamps utilize an inverted Darlington circuit and offer switchable 48V phantom power, making them suitable for both dynamic and condenser microphones. Additionally, each input includes a 26 dB attenuation switch, perfect for managing high-volume sound sources like guitar amplifiers.

The MG06X boasts stereo XLR and 1/4″ outputs for connecting to PA systems or monitor speakers, along with a 1/4″ headphone output for personal monitoring needs. Its built-in effects can be applied to the two mic/line combo inputs and include reverb and delay with various settings.

Key Features

• Consists of 6 programs (3 reverb, 3 delay) for enhanced audio effects.
• 2 XLR-1/4″ combo mic/line inputs for versatile connectivity.
• Provides 2-band EQ and high-pass filter at 80 Hz on mic/line inputs.
• Switchable 48V phantom power and 26 dB attenuation switches available.
• Stereo XLR and 1/4″ outputs, plus a 1/4″ headphone output.
• Compact metal chassis ensuring durability for on-the-go use.

Specifications

Specification	Details
Effects Engine	SPX Algorithm: 6 Programs (3 Reverb, 3 Delay)
Input Channels	2 x XLR-1/4″ Combo (Mic/Line); 2 x 1/4″ Stereo (Line)
Phantom Power	+48 V Switchable, Channels 1, 2
Output Channels	2 x XLR Stereo; 2 x 1/4″ Stereo; 1 x 1/4″ Headphone
Bus	1 x Stereo
Pad	26 dB (Mono Channels)
HPF	80 Hz, 12 dB/Oct (Mono Channels)
Equalizer	EQ High (Mono Channels): ±15 dB, 10 kHz Shelving; EQ Low (Mono Channels): ±15 dB, 100 Hz Shelving
LED	Indicator turns on at 3 dB below clipping
Level Metering	2 x 7-Segment LED Meter (Peak, +6, +3, 0, -3, -10, -20 dB)
Total Harmonic Distortion	0.01% @ +8 dBu (20 Hz to 20 kHz), Gain Min; 0.003% @ +18 dBu (1 kHz), Gain Min
Frequency Response	20 Hz to 20 kHz ±0.5 dB, Nominal Output Level @ 1 kHz, Gain Min
Equivalent Input Noise	-128 dBu (Mono Input, 150 Ohms, Gain Max)
Residual Output Noise	-102 dBu (Stereo Out, Stereo Level Min)
Crosstalk	-88 dB

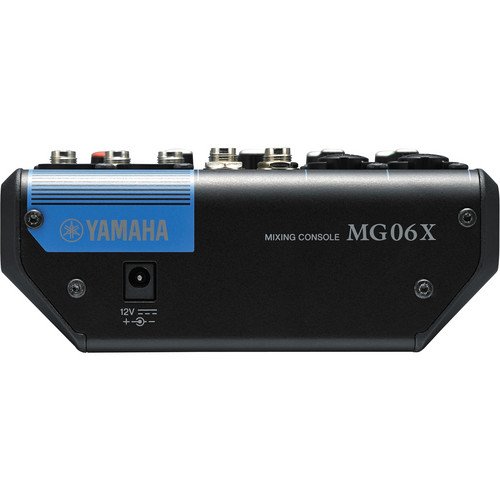

Power Requirement	PA-130 (12 VDC / 1 A), 120 VAC, 60 Hz; MU18 (12 VDC / 1.5 A), 100-240 VAC, 50/60 Hz or Equivalent
Power Consumption	12 W
Dimensions	5.9 x 2.4 x 7.9″ / 149 x 62 x 202 mm
Net Weight	1.98 lb / 0.9 kg

Packaging Info

Package Weight	3.27 lb
Box Dimensions (LxWxH)	10.7 x 9.75 x 4.75″
