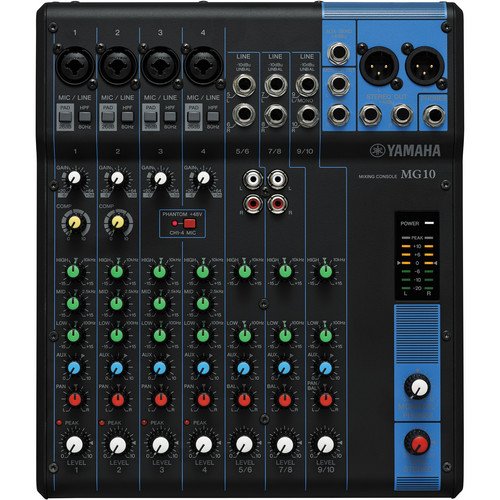

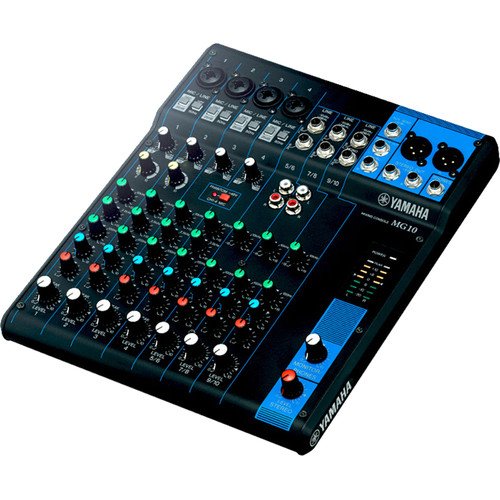

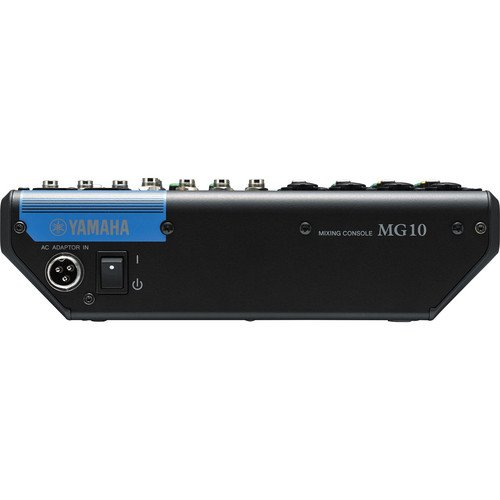

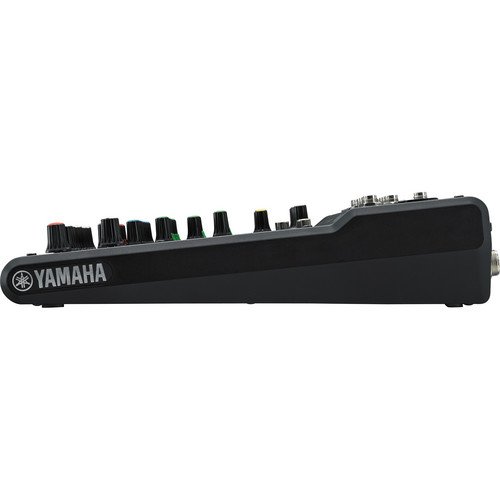

Yamaha MG10 10-Channel Analog Mixing Console with Mic Preamps and Pad Switch

Name: Yamaha MG10 10-Channel Analog Mixing Console with Mic Preamps and Pad Switch
Brand: Yamaha
SKU: MG10
Availability: InStock

AED 820

The Yamaha MG10 is a compact ten-input mixer designed for performances, lectures, and recordings. It includes four mic/line combo inputs with D-PRE mic preamps and six 1/4″ line inputs with stereo level controls. Each mic/line input has a 3-band EQ, pan control, and high pass filter. The D-PRE mic preamps offer an inverted Darlington circuit, 48V phantom power, and 26dB attenuation switches for versatile sound management.

In stock

Estimated Delivery : Up to 3 business days
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

Yamaha MG10 10-Channel Mixer

The Yamaha MG10 is a versatile and compact 10-input mixer, ideal for performances, lectures, recordings, and similar applications. Designed to offer superior sound quality and easy operation, this mixer features four D-PRE microphone preamps and six line inputs to cater to a wide range of audio sources. The MG10 mixer ensures your sound is crisp and clear, making it a reliable choice for professionals and enthusiasts alike.

Key Features

Specification	Details
Phantom Power	+48 V switchable, channels 1 – 4
Input Channels	4x mono [mic/line], 3x stereo [line]
Output Channels	2x stereo out, 1x monitor out, 1x headphone out, 1x aux out
Bus	Stereo: 1, AUX[FX]: 1
Pad	26 dB (mono channels)
HPF	80 Hz, 12 dB/oct (mono channels)
Compressor	Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
Equalizer	EQ high gain: +15 dB/-15 dB, Frequency: 10 kHz shelving; EQ mid gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking; EQ low gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
LED	Peak LED turns on when post EQ signal reaches 3 dB below clipping
Level Metering	2 x 7-segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
Total Harmonic Distortion	0.02% @ +14 dBu (20 Hz to 20 kHz), GAIN knob: Min, 0.003% @ +24 dBu (1 kHz), GAIN knob: min
Frequency Response	+0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: min
Equivalent Input Noise	-128 dBu (mono input channel, Rs: 150 Ω, GAIN knob: max)
Residual Output Noise	-102 dBu (STEREO OUT, STEREO LEVEL knob: min)
Crosstalk	-83 dB
Power Requirement	PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
Power Consumption	22.9 W
Dimensions	9.6 x 2.8 x 11.6″ (244 x 71 x 294 mm)
Net Weight	4.19 lb (1.9 kg)
