Yamaha TF1 Digital Audio Mixing Console

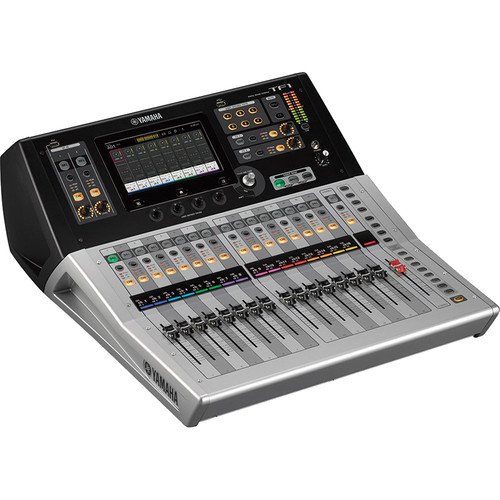

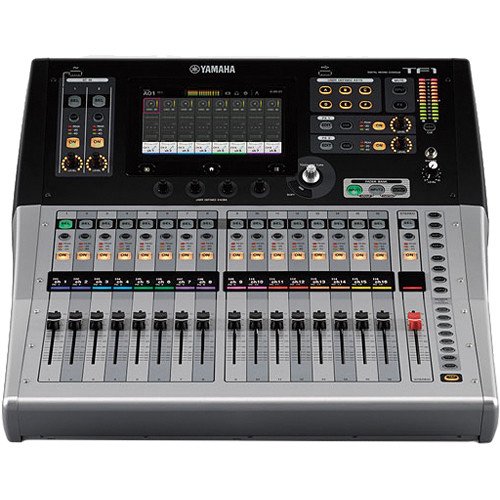

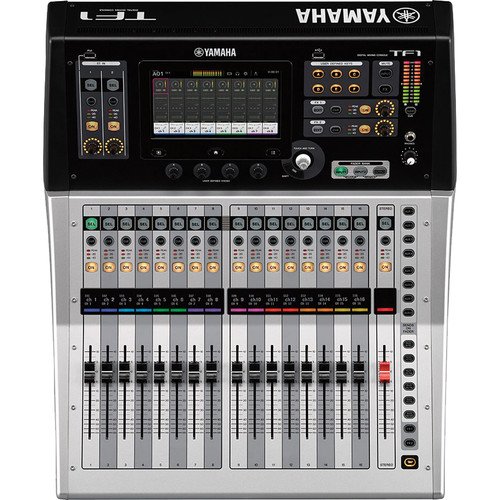

The Yamaha TF1 is a versatile and compact rack-mountable digital audio mixing console designed for live sound reinforcement and recording applications. With its user-friendly touchscreen display and 17 motorized faders, the TF1 offers seamless control over your mix. Expandability up to 40 input channels through the optional Tio1608-D I/O rack ensures it meets the demands of various audio environments.

Alongside live mixing capabilities, the TF1 excels in recording scenarios, providing 34 x 34 channel digital recording and playback via USB 2.0. It features compatibility with any DAW software for easy integration into your recording workflow, and supports 2 x 2 channel recording and playback from USB storage devices.

Connectivity and Inputs

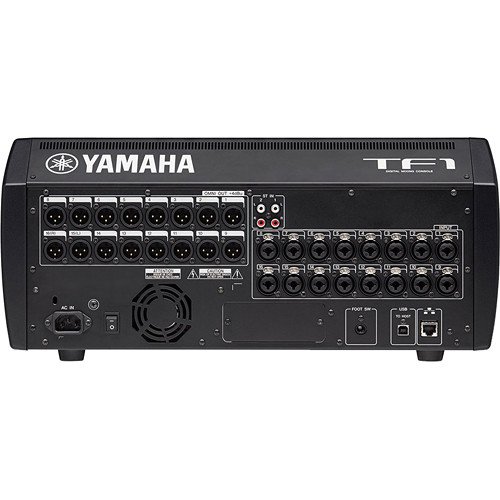

The TF1 offers 16 analog XLR/TRS combo mic/line inputs with 48V phantom power, plus an additional 2 analog RCA stereo line inputs. For output, there are 16 analog XLR outputs, ensuring robust connectivity for all your audio needs. Each combo input features a recallable D-PRE microphone preamp, comprehensive EQ, and dual dynamics processors for superior sound shaping.

Processing Power

The TF1 console is equipped with eight advanced FX processors, providing a wide array of effects such as reverb, delay, flanger, chorus, and multi-band compression, perfect for fine-tuning your sound. Steinberg’s Nuendo Live software is included, enhancing multi-track recording and virtual sound check capabilities.

Key Features
